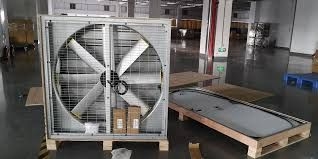

In the 2026 Malaysian mechanical sector, the "No Belt" AC Fan refers to the industry-wide transition to Direct-Drive technology, typically utilizing IE5-rated Electronically Commutated (EC) motors.

Under the Energy Efficiency and Conservation Act (EECA) 2024, legacy belt-driven fans are now considered energy and maintenance liabilities. Removing the belt system is the most effective way to lower your Building Energy Intensity (BEI) and satisfy a statutory Registered Energy Manager (REM) audit.

---

1. The Engineering Logic: Why "No Belt" is Superior

A "No Belt" or Direct-Drive fan has the impeller (blades) mounted directly onto the motor shaft. This architectural shift solves three major mechanical issues inherent in legacy AHUs:

• Zero Transmission Loss: Belts and pulleys typically lose 2–5% of energy through friction and slippage. Direct-drive fans operate at near 100% transmission efficiency, ensuring every watt of electricity is used to move air.

• Sterile Airflow (DOSH 2026): Belts shed "black dust" (rubber particulate matter) as they wear. This dust fouls cooling coils and contaminates indoor air. A beltless system is sterile, making it essential for meeting the <1000 CFU/m³ microbial limits in modern health audits.

• Maintenance Elimination: Monthly belt tensioning and annual belt replacements are eliminated. Modern IE5 motors use sealed-for-life bearings, drastically reducing the O&M (Operation & Maintenance) budget.

---

2. Statutory Benchmarks: 2026 Compliance

To pass a 2026 energy audit in Malaysia, AHU fans must meet specific Specific Fan Power (SFP) targets. Belt-driven fans rarely hit these targets consistently.

Performance Metric	Legacy Belt-Drive Fan	Modern No-Belt EC Fan
SFP Performance	1.4 – 1.8 kW/m³/s	0.6 – 1.0 kW/m³/s
Motor Standard	IE1 / IE2	IE5 Ultra-Premium
Efficiency Profile	Drops at partial speeds	High efficiency at all speeds
Control Logic	External VFD required	Integrated Digital Controls

---

3. High-Impact Retrofit Configurations

At EKG (Malaysia) SDN BHD, we utilize two primary "No Belt" configurations for AHU modernizations:

• EC Plug Fans: These "free-wheeling" impellers are ideal for compact AHU boxes. They are easy to install and offer high static pressure capabilities.

• FanWall (Array) Technology: We replace one large legacy blower with a modular matrix of smaller direct-drive fans. This provides N+1 redundancy; if one fan fails, the others ramp up, ensuring zero downtime for your facility.

---

4. Financial & Regulatory Drivers (Malaysia 2026)

• 100% GITA Sustainability: Upgrading to high-efficiency, beltless technology is a recognized "Green" intervention. This qualifies for the 100% Green Investment Tax Allowance (GITA), allowing you to offset the project cost against your statutory tax liability.

• Penalty Protection: Achieving a lower SFP protects building owners from statutory fines (up to RM100,000) associated with non-compliance with the EECA 2024.

• Acoustic Optimization: Beltless fans operate at higher frequencies that are easier to dampen using Fiber-Free Closed-Cell Insulation, helping your mechanical room achieve NC 35 standards.

Is your facility currently running on legacy belt-driven technology, or are you ready to transition to a high-performance 2026 "No Belt" platform?
