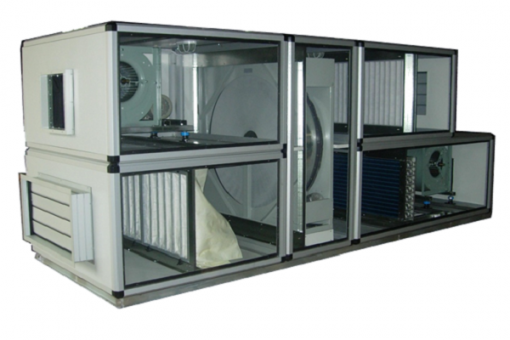

DX-Type Commercial AHU Installation

In the 2026 engineering landscape, DX-Type (Direct Expansion) Commercial AHU Installation represents a highly efficient solution for facilities where a centralized chilled water plant is either impractical or too costly to maintain. Under the Energy Efficiency and Conservation Act (EECA) 2024, DX systems must now utilize high-efficiency inverter technology and low-GWP refrigerants to meet mandatory Building Energy Intensity (BEI) targets.

At EKG (Malaysia) SDN BHD, we specialize in the turnkey installation of DX-type units, ensuring they are sterile, silent, and statutory-compliant for the Malaysian market.

1. The DX Advantage in 2026

A DX-type AHU utilizes a refrigerant-to-air heat exchanger, where the cooling is provided by a dedicated outdoor condensing unit (ODU).

Inverter Precision: Modern DX installations utilize Variable Refrigerant Flow (VRF) or inverter-driven compressors. This allows the AHU to modulate its cooling capacity to match the actual thermal load, preventing the energy-wasting "On-Off" cycling typical of older systems.
Space Efficiency: Without the need for large chiller plants, cooling towers, or complex hydronic piping, DX installations are ideal for KL's urban retrofits and medium-scale commercial developments.
EECA Compliance: By linking the DX unit to an Energy Management System (EnMS), we provide the auditable data required for the Energy Commission (ST) periodic audits.

2. Technical Installation Sequence

A DX AHU installation requires precise coordination between the air handling cabinet and the outdoor refrigerant circuit.

Refrigerant Hookup & Integrity

Copper Piping Standards: We utilize medical-grade, nitrogen-purged copper piping for the refrigerant lines. This prevents internal oxidation that could damage the compressor.
Oil Return Management: For installations where the ODU is located far from the AHU, we engineer oil traps and proper piping slopes to ensure the compressor remains lubricated and efficient.
Vacuum Testing: We perform a triple-evacuation process down to 500 microns to ensure the system is completely free of moisture and non-condensables, protecting the unit's thermal performance.

Air-Side Integration

IE5 EC Fan Walls: Even in DX units, we prioritize IE5 EC Fan Walls to keep the Specific Fan Power (SFP) below the legal limit of 1.1 kW/m³/s.
Laminar Flow Transitions: Duct connections are modeled in LOD 400 BIM with smooth transitions to minimize static pressure loss and mechanical noise.

3. Sterile and Silent Engineering

DX systems are often used in decentralized office zones, making acoustic and hygiene standards paramount.

Feature	Installation Standard	Engineering Benefit
Electronic Expansion Valve (EEV)	Precise refrigerant metering.	Eliminates "Hissing" noise and ensures stable supply air temperatures.
TB2 Thermal Break Casing	High-density insulation panels.	Prevents exterior sweating and maintains an NC 30-35 noise profile.
Antimicrobial Drain Pan	Sloped SUS 304 stainless steel.	Ensures sterile drainage and prevents "Sick Building Syndrome."
Multi-Stage Filtration	G4 + F7 + UV-C stages.	Provides hospital-grade air purity for commercial tenants.

4. Statutory Commissioning for 2026

Under the current mandates, a DX AHU installation is only complete once its performance is verified and logged.

Verified SFP Reporting: Real-time power monitoring to prove the unit operates within the statutory energy limits.
Digital Twin Handover: You receive an IFC-compliant 3D model containing all "As-Built" piping paths, serial numbers, and maintenance schedules.
GITA Support: EKG provides the technical documentation required for your business to claim the Green Investment Tax Allowance (GITA) on qualifying high-efficiency DX systems.

5. Why Partner with EKG (Malaysia) SDN BHD?

Technical Integrity: Our installations are led by mechanical engineers who specialize in the thermodynamics of direct expansion cooling in tropical climates.
Zero-Clash Execution: We resolve piping and ducting conflicts in the virtual world before a single copper tube is cut on-site.
EECA 2024 Experts: We ensure your DX installation is an asset to your building's energy star rating, not a liability.

Is your DX system engineered for 2026 energy compliance? Contact EKG (Malaysia) SDN BHD today. We specialize in DX-Type Commercial AHU Installations that are sterile, silent, and statutory-compliant.

Would you like to review a comparative analysis of how a high-efficiency DX-Type AHU compares to a traditional chilled water system for your specific facility size?
