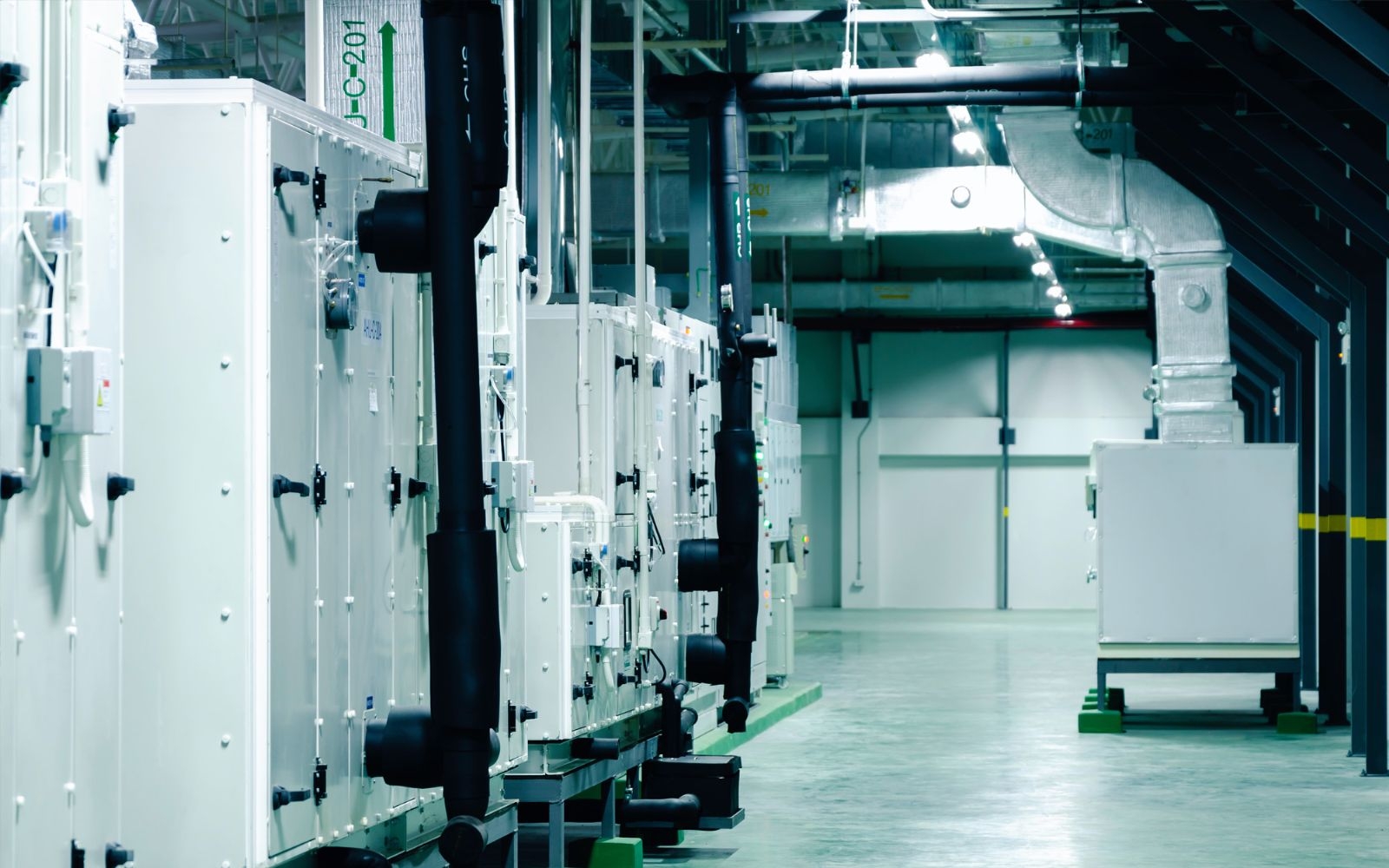

Cleanroom Grade AHU Installation KL

In the 2026 landscape of Malaysia's semiconductor and pharmaceutical boom, a Cleanroom Grade AHU Installation is no longer just a mechanical project; it is a statutory and scientific commitment. Following the full enforcement of the Energy Efficiency and Conservation Act (EECA) 2024, cleanroom facilities in Kuala Lumpur must now balance extreme air purity with mandatory Building Energy Intensity (BEI) targets.

At EKG (Malaysia) SDN BHD, we engineer cleanroom installations that meet ISO 14644-1 classifications while ensuring your facility remains sterile, silent, and energy-compliant.

1. The Anatomy of a Hygienic AHU (LOD 400)

For cleanrooms—from ISO 8 (Packaging) to ISO 5 (Aseptic Filling)—the AHU is a "Biologically Inert" machine. Our installations prioritize internal architecture that eliminates microbial "dead zones."

TB2 Thermal Break Casing: Mandatory for cleanrooms. By decoupling the inner and outer skins, we eliminate the "sweating" that leads to mold—a critical requirement for MOH (Ministry of Health) audits.
SUS 304/316 Stainless Steel Skins: Internal surfaces are crevice-free with coved corners and sealed with medical-grade anti-fungal sealants.
Airtightness (Class L1): We utilize precision-sealed, double-skin panels ( $50\text{--}90\text{ mm}$ thickness) to prevent any untreated air from bypassing the filter stages.

2. Multi-Stage Filtration & IAQ Sequence

A cleanroom grade installation follows a rigorous filtration hierarchy to protect the final HEPA/ULPA stages and maintain air purity.

Stage	Filter Class	Purpose
Pre-Filter	G4 / G10	Captures large debris to protect the cooling coil.
Secondary	F7 / F9	Removes 80-90% of particulate matter before final treatment.
Final Stage	H14 HEPA	99.995% efficiency for 0.3-micron particles.
Germicidal	UV-C / Ag+	UV-C lamps bathe the coil to destroy bacterial DNA on contact.

3. Precision Airflow: Laminar vs. Turbulent

The installation is engineered based on the specific ISO classification required for your process.

Laminar (Unidirectional) Flow: For ISO 5 and cleaner, air moves like a "solid block" from ceiling to floor to "wash" the space. We ensure the AHU provides the necessary static pressure to push through the ceiling-mounted HEPA modules.
Turbulent (Mixed) Flow: For ISO 7 and 8, filtered air is introduced to dilute particle concentrations. We coordinate the supply and return grilles at opposite sides to facilitate a "plug" flow effect.
Pressure Cascading: We calibrate the AHU to maintain a higher pressure in the cleanest room (e.g., $+15\text{ Pa}$ ), ensuring that air only leaks out of the cleanroom, never in.

4. EECA 2024 & Digital Commissioning

In 2026, even the most sensitive cleanroom must be energy-efficient to pass statutory audits.

IE5 Fan Wall Redundancy: We utilize modular fan arrays. If one module requires maintenance, the others ramp up, ensuring the cleanroom never loses its pressure or classification.
Low SFP ( $< 1.1\text{ kW/m}^3\text{/s}$ ): By using low-face-velocity coils ( $< 2.0\text{ m/s}$ ), we reduce fan energy consumption while maintaining particle capture efficiency.
EnMS Integration: All EKG cleanroom units connect to your Energy Management System (EnMS) to provide the auditable data required for the Energy Commission (ST) annual reports.

5. Why Partner with EKG (Malaysia) SDN BHD?

Certified Specialists: Our installations meet VDI 6022 (Hygiene) and HTM 03-01 standards for clinical and industrial precision.
Zero-Subcontractor Model: We manage the full EPCC (Engineering, Procurement, Construction, and Commissioning) internally, ensuring the design intent is met during the validation phase.
LOD 400 BIM Coordination: We ensure these larger hygienic units fit perfectly within your mechanical room while maintaining the required service clearances.

Is your cleanroom installation engineered for the 2026 energy mandate? Contact EKG (Malaysia) SDN BHD today. We specialize in Cleanroom Grade AHU Installations that are sterile, silent, and statutory-compliant.

One single relevant follow-up question: Would you like to review the pressure cascading strategy for your specific ISO classification requirements?
