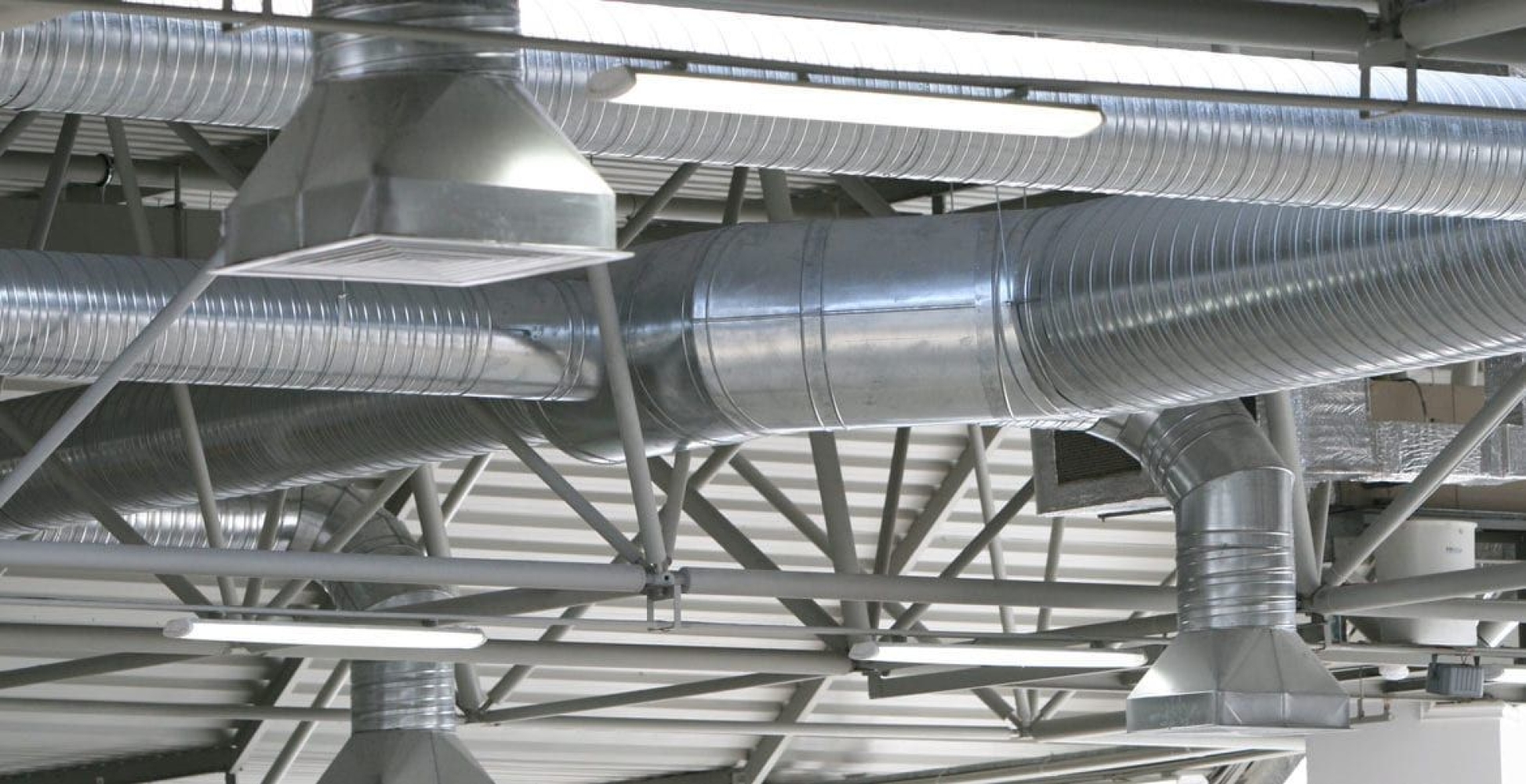

High-Static Pressure Duct Fabrication by EKG M&E Sdn Bhd

In 2026, High-Static Pressure Duct Fabrication is a specialized engineering requirement for facilities that demand massive air volumes, such as healthcare surgical suites, laboratories, and high-rise vertical shafts. Under the Energy Efficiency and Conservation Act (EECA) 2024, high-pressure systems are under intense scrutiny; even a minor leak in a high-static environment results in exponential "Energy Bleed." For projects in Kuala Lumpur and Selangor, these systems must be built to withstand extreme internal force without deformation.

At EKG M&E Sdn Bhd, we apply 34 years of mechanical engineering expertise to the fabrication and rigging of high-pressure systems. We ensure your air distribution is a "Pressure-Lock Vessel" that supports a 5-Star Energy Intensity Label.

---

1. The Engineering Logic: Managing the Force

High-static systems (typically operating above 1,000 Pa to 2,500 Pa+) exert significant "Hoop Stress" on duct walls. If not properly fabricated, the ductwork will "Oil-Can" (vibrate) or even rupture at the seams.

• Structural Reinforcement: We utilize heavier-gauge steel and external "Stiffeners" (angle iron or standing S-cleats) to prevent the duct walls from bowing. This ensures the duct remains a rigid conduit, maintaining the precise air velocity required for your Registered Energy Manager (REM) audit.

• Leakage Class D Excellence: In a high-pressure system, air is forced out of tiny gaps at high velocity. We target DW143 Class D (the highest airtightness standard). This ensures your Variable Frequency Drives (VFDs) don't have to "Over-Pump" to compensate for leaks, directly lowering your Building Energy Index (BEI).

• Aerodynamic Transitions: At high pressures, turbulence causes massive energy loss. We fabricate specialized radius elbows and "Vane-In" turns to keep the air path laminar, reducing the total static pressure your fans must overcome.

---

2. Specialized Fabrication & Sealing Protocol

Fabricating for high pressure requires a departure from standard commercial methods:

A. Fully Welded or Reinforced Seams

For extreme pressures, we utilize Fully Welded Longitudinal Seams or reinforced mechanical locks (such as the Large-Scale Pittsburgh Lock) to ensure the seam is as strong as the metal itself.

B. High-Pressure Flange Systems

We utilize Companion Angle Iron Flanges or specialized TDC/TDF profiles with reinforced corners. Every joint is fitted with high-density, neoprene gaskets and high-performance, non-hardening mastics that won't "blow out" under pressure.

C. Internal Tie-Rods

In large-dimension ducts, we install internal conduits or tie-rods that connect the opposing walls. This internal bracing provides the structural integrity needed to handle high positive or negative pressures without the duct collapsing or expanding.

---

3. Rigging & Pressure Verification

Rigging high-static ductwork—especially in vertical risers—requires meticulous planning due to the weight of the reinforced metal.

• Heavy-Duty Rigging: We develop a "Vertical Rigging Plan" for high-pressure risers, utilizing specialized hoists and reinforced support brackets anchored to the building's structural core.

• Mandatory Pressure Testing: Every section is subjected to a DW143 or SMACNA pressure test before being covered by insulation. We provide the "Physical Proof" (Digital Manometer Logs) that the system maintains its pressure integrity.

---

4. Why High-Pressure Precision is Essential for 2026

• Lowering TNB Maximum Demand: By eliminating "System Effect" losses and leaks, we flatten your energy profile. This prevents the peak power surges that lead to high utility penalties in Malaysia.

• IAQ & Biosecurity (DOSH 2026): In healthcare or cleanroom settings, high-pressure ducts must deliver air through HEPA filters. Our airtight fabrication ensures the pressure is high enough to overcome filter resistance without leaking contaminated air into the ceiling void.

• Asset Longevity: Reinforced, high-static ductwork does not suffer from "Fatigue Cracking" caused by constant vibration. Our systems are engineered for a 30+ year life cycle in 24/7 industrial and medical environments.

Why Choose EKG M&E Sdn Bhd?

• 34 Years of Engineering Depth: Based in KL, we understand the mechanical stresses of high-rise "Stack Effect" and high-velocity air. We use math and metrology to ensure your system is audit-ready.

• Turnkey Fabrication & Rigging: You receive a comprehensive digital dossier, including material mill certificates, welding/sealing logs, and certified pressure test results.

• BIM Coordination: We use 3D modeling to ensure your reinforced ducting fits within the tight mechanical shafts of modern KL developments without clashing with other services.

Is your high-pressure air path a fortified vessel or a hidden energy drain? Contact EKG M&E Sdn Bhd today for specialized high-static pressure duct fabrication and secure the 5-star efficiency of your building.
