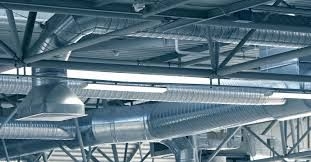

SMACNA Air Leakage Testing (SATP) by EKG M&E Sdn Bhd

In the 2026 Malaysian M&E landscape, SMACNA Air Leakage Testing (SATP) is the gold standard for verifying the structural and volumetric integrity of ductwork. While British standards (DW143) are common, the SMACNA (Sheet Metal and Air Conditioning Contractors' National Association) protocol is the preferred choice for US-multinational projects, Data Centers, and high-spec industrial plants in Kuala Lumpur and Selangor.

Under the Energy Efficiency and Conservation Act (EECA) 2024, SMACNA-certified testing provides the rigorous empirical data required to prove a building's 5-Star Energy Intensity Label.

---

1. The SMACNA Leakage Class System

Unlike simple "pass/fail" tests, SMACNA utilizes a Leakage Class ($C_L$) system. This allows engineers to specify the maximum allowable leakage based on the duct's shape and pressure.

• Round/Oval Ducts: Inherently more airtight. SMACNA allows for a lower Leakage Class.

• Rectangular Ducts: Due to long longitudinal seams and transverse joints, rectangular ducts are assigned a higher (more realistic) Leakage Class.

• The Formula: SMACNA defines leakage ($F$) as:

  $$F = C_L \times P^{0.65}$$

  (Where $P$ is the static pressure). At EKG M&E Sdn Bhd, we use this math to ensure your Variable Frequency Drives (VFDs) are not working harder than the physics require.

---

2. Our SMACNA SATP Protocol

We utilize a medical-grade, multi-stage diagnostic process to ensure your infrastructure is 100% compliant:

• PANDA Calibration: We deploy high-precision Positive and Negative Duct Accreditation (PANDA) testers that are calibrated to SMACNA accuracy standards.

• Sectional Pressure Mapping: We isolate duct sections and pressurize them to 25% above the design operating pressure (as per SMACNA guidelines) to ensure a safety margin for the seals.

• Volumetric Flow Analysis: We record the exact "Make-up Air" required to hold pressure. This value is converted into the SMACNA Leakage Class to verify if the installation meets the project specification.

• Forensic Smoke Trace: For systems failing to meet their $C_L$ target, we use Non-Toxic Smoke Generators to visually pinpoint leaks in gaskets or seams—critical for your annual BOMBA Fire Certificate (FC) renewal.

---

3. Why SMACNA SATP is Critical for 2026

Benefit	Impact on Your Asset
EECA 2024 Compliance	Provides the "Investment Grade" audit data required by Suruhanjaya Tenaga.
TNB Savings	Reducing $C_L$ directly lowers fan power, often cutting bills by 30%.
IAQ Validation	Prevents "Plenum Aspiration," keeping you below the 500 cfu/m³ bacterial ceiling.
Asset Longevity	Airtight ducts reduce vibration and motor heat in your AHUs and chillers.
BIM Integration	We map SATP results into your Digital Twin for real-time performance tracking.

---

4. Comparison: SMACNA vs. DW143

At EKG M&E Sdn Bhd, we help consultants choose the right standard for the project:

Feature	DW143 (British)	SMACNA SATP (American)
Class System	A, B, C, D	Numerical Leakage Class ($C_L$)
Focus	General Commercial	High-Spec / Industrial / Data Centers
Testing Pressure	Operating Pressure	1.25x Operating Pressure (Safety Factor)
2026 Popularity	Standard Office Towers	MNC Hubs & Semi-Conductor Plants

Why Choose EKG M&E Sdn Bhd?

• 34 Years of Engineering Depth: Based in KL, we understand the mechanical physics of high-rise and industrial plants. We ensure that SATP pressures never damage your Smart Actuators or internal insulation.

• Turnkey Certification: You receive a comprehensive digital certificate containing the calibrated test logs and engineering sign-off.

• Total Coordination: We work closely with your Registered Energy Manager (REM) to ensure all SMACNA data is seamlessly integrated into your energy efficiency reports.

Is your facility's ductwork certified to SMACNA standards? Contact EKG M&E Sdn Bhd today for a professional SMACNA Air Leakage Test (SATP) and secure the 5-star performance of your building.
