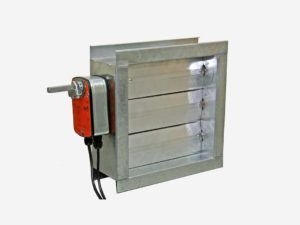

Programmable HVAC Air Volume Dampers by EKG M&E Sdn Bhd

In the 2026 Malaysian M&E landscape, Programmable HVAC Air Volume Dampers represent the evolution of air distribution from a mechanical necessity into a software-defined asset. For corporate offices, cleanrooms, and commercial hubs in Kuala Lumpur and Selangor, these dampers are the primary mechanism for meeting the rigorous Energy Efficiency and Conservation Act (EECA) 2024 standards.

At EKG M&E Sdn Bhd, we apply 34 years of mechanical engineering expertise to integrate programmable dampers that allow facility managers to "schedule" airflow like they do IT backups, securing a 5-Star Energy Intensity Label.

---

1. The Engineering of Software-Defined Airflow

Unlike standard motorized dampers that simply react to a thermostat, programmable dampers contain onboard logic or are mapped via the Building Management System (BMS) to follow complex operational sequences.

• Time-Based Logic & Scheduling: You can program specific "Occupancy Profiles." For example, dampers in common areas can be programmed to $100\%$ open during peak hours $(9\text{--}11\text{ AM})$ and automatically throttle to a $10\%$ "Hygiene Flow" during lunch hours or late nights, eliminating the waste of cooling empty spaces.

• Custom Control Curves: We can program the actuator's response curve to be linear or equal-percentage. This ensures that a $50\%$ signal from the BMS results in exactly $50\%$ of the design airflow, preventing the "hunting" and thermal instability found in non-programmable units.

• BACnet/Modbus Integration: These dampers function as IoT nodes. Every parameter—from blade angle and motor torque to internal temperature—is programmable and viewable from a centralized dashboard in real-time.

---

2. Strategic Applications for 2026 Efficiency

Under the EECA 2024 framework, programmability is the key to minimizing your Building Energy Index (BEI):

• Automated Night Purge: Programmable dampers can be set to open fully at $3\text{ AM}$ to flush the building with cooler night air (when outdoor humidity allows), reducing the "Thermal Soak" and lowering the chiller's startup load by up to 15%.

• Demand-Controlled Ventilation (DCV): Linked to $CO_2$ and VOC sensors, the dampers are programmed to modulate fresh air intake. By introducing only the minimum required outdoor air, the system minimizes the energy spent dehumidifying KL's $80\%+$ outdoor humidity.

• Static Pressure Reset (SPR) Logic: The dampers are programmed to report their "Degree of Openness." The BMS uses this data to signal the Variable Frequency Drive (VFD) to slow the fan down until the most demanding damper is nearly $100\%$ open, achieving exponential energy savings.

---

3. Compliance and Asset Protection

• EECA 2024 Audit Readiness: Programmable dampers provide the verifiable digital trend logs your Registered Energy Manager (REM) needs for official Suruhanjaya Tenaga (ST) audits. It proves the building is operating on a high-efficiency logic rather than a "set and forget" manual schedule.

• TNB Bill Management: By programming "Peak Shaving" sequences, the dampers can be set to slightly throttle non-critical zones during the highest tariff periods, directly lowering your monthly Maximum Demand charges.

• DOSH IAQ 2026 Hygiene: Programmable "Flush Cycles" ensure that even during long weekends, the building maintain a minimum air change rate, preventing the stagnant air and mold growth that trigger failed indoor air quality audits.

---

Performance Matrix: Standard Motorized vs. Programmable Dampers

Feature	Standard Motorized Dampers	Programmable Smart Dampers (2026)
Control Logic	Reactive (Thermostat Only)	Proactive (Schedules & Logic)
Communication	Analog (One-Way)	Digital (Two-Way IoT Nodes)
System Visibility	Basic Status	Full Diagnostics & Performance Logs
Energy Waste	Moderate (Constant Setpoints)	Minimal (Dynamic Demand Profiles)
Acoustic Quality	Variable	Programmed for Silent Transition
EECA 2024 Status	Basic Compliance	Audit-Ready / 5-Star Asset

---

Why Choose EKG M&E Sdn Bhd?

• Total 3D BIM Coordination: We model all programmable damper placements in 3D to ensure actuators and communication gateways remain accessible for mandatory annual inspections.

• Turnkey Control Programming: We don't just supply hardware; our engineers program the sequences of operation (SOO) that ensure your dampers, chillers, and fans work in perfect thermodynamic harmony.

• 34 Years of Engineering Depth: Based in Kuala Lumpur, we combine decades of mechanical experience with the latest in digital automation to protect your infrastructure investment.

Is your building's airflow operating on an outdated, static schedule? Contact EKG M&E Sdn Bhd today for a programmable HVAC air volume damper audit and secure the long-term efficiency of your facility.

---

Expert Guide: Are you looking to implement custom airflow schedules for a multi-tenant office building, or are you designing a high-precision environment like a laboratory that requires programmable "safety" and "purge" modes?
