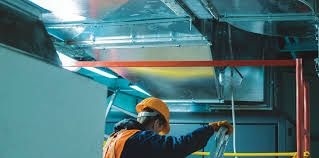

Automated Aerosol Duct Pressure Balancing by EKG M&E Sdn Bhd

In the 2026 Malaysian M&E sector, Automated Aerosol Duct Pressure Balancing represents the ultimate integration of Aeroseal technology with professional Testing, Adjusting, and Balancing (TAB) protocols. Traditionally, air balancing is a manual, "trial-and-error" process that is often sabotaged by hidden leaks. Automated aerosol balancing eliminates this variable by sealing the system and balancing the pressure simultaneously, ensuring that the designed airflow reaches every zone in your facility.

Following the EECA 2024 and the DOSH ICOP IAQ 2026 mandates, this automated approach is the fastest way to achieve a certified Airtightness Class 6 (ATC 6) and a high Building Energy Index (BEI) Star Rating.

---

The Synergy: Sealing + Balancing = Performance

Unlike traditional methods where sealing and balancing are separate stages, this automated process treats the ductwork as a single, dynamic pressure vessel.

1. Computer-Controlled Pressure Profiling

The system begins by pressurizing the ductwork and using high-precision sensors to map the current pressure distribution.

• The Insight: It identifies exactly where pressure drops are occurring due to leakage.

• The Benefit: This data allows our technicians to determine if a zone’s lack of airflow is due to a damper setting or a structural leak, a distinction that manual TAB often misses.

2. Simultaneous Leak Sealing & Pressure Correction

As the non-toxic aerosol mist is injected, it targets leaks from the inside out.

• Real-Time Balancing: Our SmartSeal® software monitors the rise in static pressure as leaks are closed. As the duct becomes airtight, the system automatically calculates the new "Pressure Balance" of the network.



• The Apotheosis of Coverage: Because the sealant is carried by the air pressure itself, it reaches every crevice—including those in inaccessible ceiling voids—ensuring a "surgical" repair that stabilizes the system's rhythm and flow.

3. Automated VFD & Damper Optimization

Once the target airtightness (ATC 6) is reached, the automated results are used to calibrate the system's hardware.

• Fan Power Reduction: With leakage eliminated, the Variable Frequency Drive (VFD) frequency can be lowered by up to 32% while still delivering the required $L/s$ to every room.

• Stable Airflow: A balanced, sealed system is far more stable; it maintains its pressure settings even as outdoor temperatures and occupancy levels fluctuate.

---

Critical Operational & Compliance Benefits

• TNB Bill Reduction (Up to 30% Total Savings):

  By combining air-to-air energy recovery with an airtight, balanced duct network, you eliminate "fan fighting" and chiller overwork. This drastically lowers your monthly TNB "Maximum Demand" charges and annual $kWh$ consumption.

• EECA 2024 Certification:

  The automated software provides a Certificate of Airtightness and a TAB Performance Report. This documented evidence is essential for your Registered Energy Manager (REM) to satisfy mandatory Energy Commission (ST) audits.

• Medical-Grade IAQ (DOSH 2026):

  By achieving a 0.5%–1% leakage rate, you eliminate the "aspiration" of contaminated plenum air. This is critical for hospitals, data centers, and Grade-A offices striving to meet the 500 cfu/m³ bacterial ceiling.

---

Performance Matrix: Manual TAB vs. Automated Aerosol Balancing

Feature	Manual TAB (Legacy)	EKG Automated Aerosol Balancing
Logic Basis	Visual/Manual Adjustment	Computerized Pressure Profiling
Leak Mitigation	Excluded (Manual only)	Integrated (Inside-out Sealing)
Balancing Accuracy	Variable ($\pm$15%)	High Precision ($\pm$5%)
VFD Optimization	Basic	Advanced (SPR/VFD Synced)
EECA 2024 Status	Base Compliance	Audit-Ready / 5-Star Potential
TNB Bill Impact	Moderate Savings	Maximum ROI (Reduced Demand)

---

Why Choose EKG M&E Sdn Bhd?

• Total 3D BIM Coordination: We model your duct pressure zones in 3D to ensure the aerosol delivery and sensor placement are optimized for your building's unique "ductscape."

• Turnkey Validation: We provide a comprehensive "empirical tableau" of your system’s performance, including pre-seal and post-seal measurements, percentage leakage reduction, and final balanced airflow data.

• 34 Years of Engineering Depth: Based in Kuala Lumpur, we specialize in the unique psychrometrics of the Malaysian climate, ensuring your seals and balance are permanent and humidity-resistant.

Is your balancing report limited by hidden leaks? Contact EKG M&E Sdn Bhd today for a professional automated aerosol duct pressure balancing audit and secure the peak performance of your HVAC infrastructure.
