Air Duct Leak Sealing by EKG M&E Sdn Bhd

In the 2026 Malaysian regulatory landscape, Air Duct Leak Sealing has evolved from a basic maintenance task into a critical requirement for EECA 2024 compliance. In Kuala Lumpur and Selangor, where the temperature often hits 33°C, leaky ducts are the "silent killers" of your Building Energy Index (BEI). Every liter of $24$°C air that leaks into a hot ceiling plenum is energy you have paid for but never utilized.

At EKG M&E Sdn Bhd, we specialize in identifying and sealing these energy drains to ensure your facility achieves Airtightness Class 6 (ATC 6), the gold standard for high-performance buildings.

---

The 2026 Sealing Mandates: EECA & DOSH

As of 2026, air duct leaks are no longer just about comfort; they are about regulatory risk.

• EECA 2024 Compliance: The Energy Commission (ST) now audits buildings on energy intensity. Leaky ducts can account for up to 30% of cooling energy waste, which can be the difference between a 2-Star and a 5-Star Energy Intensity Label.

• DOSH ICOP IAQ 2026: Leaks in return air ducts create a "vacuum effect" that sucks in dust, humidity, and biological contaminants from ceiling voids. Sealing these leaks is mandatory to pass the 500 cfu/m³ bacterial ceiling required for healthy office environments.

---

Advanced Leak Sealing Solutions

We utilize a tiered approach depending on the accessibility and size of the leaks.

1. Aerosolized Internal Sealing (Aeroseal)

For leaks hidden behind fixed plaster ceilings or within narrow mechanical shafts where manual access is impossible.

• The Process: A computerized machine injects a non-toxic vinyl acetate polymer mist into the pressurized ductwork. The particles naturally seek out leak sites and bond together to "bridge" gaps up to 15mm.

• The Benefit: It seals 100% of the network from the inside out with zero demolition.

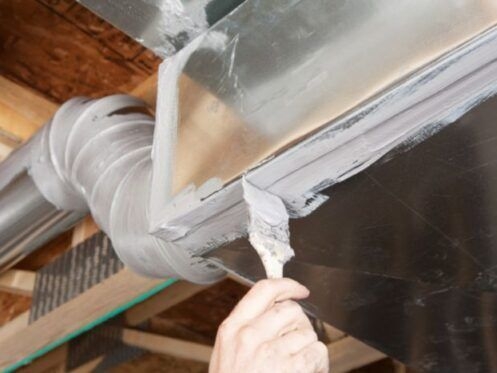

2. Fiber-Reinforced Mastic Sealing

For visible joints, plenum connections, and larger structural gaps.

• Tropical Resilience: We use high-velocity mastics that remain flexible in Malaysia's high humidity. This prevents the "cracking and peeling" common with legacy duct tapes.

• Hermetic Bonding: For larger gaps, we embed a fiberglass mesh into the mastic to create a permanent, airtight bridge that withstands thermal expansion.

---

Critical Operational & Financial Benefits

• TNB Bill Reduction (Maximum Demand):

  By ensuring 100% of the cooled air reaches the occupant, your Variable Frequency Drives (VFDs) can run at lower frequencies. This drastically lowers your monthly TNB "Maximum Demand" charges and annual $kWh$ consumption.

• Elimination of "Whistling" & Hot Spots:

  Leak sealing balances the static pressure across the floor, eliminating the annoying "whistling" sounds at diffusers and ensuring even cooling across every office zone.

• Prevention of Condensation & Mold:

  Leaks in supply ducts often cause "sweating" on the exterior of the ductwork. Sealing these leaks prevents moisture buildup in the ceiling, protecting your architectural finishes.

---

Performance Matrix: Manual vs. Aerosol Sealing

Feature	Manual Mastic/Tape	EKG Aerosol Sealing
Leak Reach	Visible/Accessible only	100% of the network (Inside-out)
Airtightness Class	Class 1 or 2	Verified Class 6 (ATC 6)
Leak Reduction	30% – 50%	70% – 95% (Verified)
Downtime	High (Ceiling removal)	Low (Non-invasive)
Verification	Visual Check	Computerized Pressure Data
EECA 2024 Status	Basic	Audit-Ready / 5-Star Potential

---

Why Choose EKG M&E Sdn Bhd?

• Total 3D BIM Coordination: For new projects, we model the duct network in 3D to identify "high-stress" joints where leaks are most likely to form.

• Certified Digital Reporting: Every project concludes with a Certificate of Airtightness. This includes a "Before and After" graph of your leakage rates, essential for your Registered Energy Manager (REM).

• 34 Years of Engineering Depth: Based in Kuala Lumpur, we provide professional leak sealing for Grade-A offices, hospitals, and high-tech factories across Malaysia.

Is your AC system leaking your energy budget into the ceiling? Contact EKG M&E Sdn Bhd today for a professional air duct leak sealing audit and secure the future efficiency of your facility.
