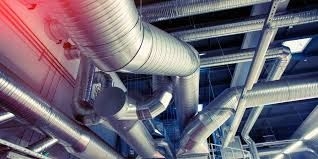

Fire Rated Staircase Pressurization Ducts by EKG M&E Sdn Bhd

In the high-rise landscape of Kuala Lumpur and Selangor, the escape stairwell is the most critical survival zone during a fire. Staircase Pressurization Ducts are engineered to inject fresh air into these stairwells, creating a high-pressure shield that physically prevents toxic smoke from entering the escape route. EKG M&E Sdn Bhd specializes in the installation of these life-safety systems, ensuring they remain operational under extreme conditions to meet BOMBA and Uniform Building By-Laws (UBBL) requirements.

---

The Engineering of a Smoke-Free Escape

The primary goal of a pressurization system is to maintain a higher air pressure inside the stairwell than in the adjacent floor areas (typically a pressure differential of 50 Pa).

1. Maintaining Pressure Integrity

For the system to work, the ductwork must deliver a precise volume of air without leakage.

• Fire-Rated Protection: Since these ducts often travel through multiple floors or "fire compartments" to reach the stairwell, they must be fire-rated for 2 hours (FRL 120/120/120). This ensures that even if a fire occurs on a lower floor, the duct remains intact to deliver fresh air to the floors above.

• High-Pressure Construction: Unlike standard HVAC, these ducts are built to withstand higher internal pressures to ensure the air reaches the furthest discharge points in a high-rise tower.

2. System Components & Logic

• Pressurization Fans: Usually located on the roof or at the ground level, these fans activate automatically when the building's fire alarm is triggered.

• Barometric Relief Dampers: To prevent the stairwell from becoming over-pressurized (which would make it difficult for elderly or young occupants to open the heavy fire doors), we integrate relief dampers that bleed off excess pressure.

• Intumescent Sealing: Every joint and wall penetration is sealed with BOMBA-approved intumescent materials that expand under heat to maintain the airtight and fire-proof integrity of the system.

---

Critical Operational & Safety Benefits

As a BOMBA-Compliant M&E Specialist, EKG ensures your pressurization infrastructure supports building efficiency:

• TNB Energy Efficiency (Dual-Purpose Optimization):

  In some designs, these ducts provide daily fresh air ventilation. By ensuring the network is Class C Airtight, we minimize static pressure loss. This allows your Variable Frequency Drive (VFD) to run fan motors at lower frequencies (Hz) during normal operation, resulting in a lower monthly TNB electricity bill.

• EECA 2024 & Building Compliance:

  Under the Energy Efficiency and Conservation Act (EECA) 2024, efficient mechanical transport is a core requirement. Our precision-sealed fire ducts prevent the waste of conditioned air into unconditioned ceiling voids, protecting your Building Energy Index (BEI).

• The "Golden Hour" for Evacuation:

  By keeping the stairwell clear of smoke, our systems provide the "Golden Hour" needed for occupants to exit safely and for BOMBA personnel to navigate the building during rescue operations.

---

Pressurization Performance Matrix

Feature	Standard HVAC Ducting	EKG Pressurization Ducts
Primary Goal	Comfort Cooling	Life Safety & Smoke Blocking
Required Pressure	Low (Commercial)	High (Differential of 50 Pa)
Fire Rating	None	Mandatory (FRL 120/120/120)
System Trigger	Thermostat	Automatic (Fire Alarm Trigger)
BOMBA Approval	Not Required	Mandatory for High-Rise FC

---

Why Choose EKG M&E Sdn Bhd?

• Total 3D BIM Coordination: High-rise ceiling voids are extremely congested. We utilize 3D modeling to route fire-rated ducts through crowded spaces, ensuring zero "clashes" with sprinklers, cable trays, or structural beams.

• Turnkey BOMBA Submission: We assist in the preparation of technical drawings and perform mandatory Pressure Differential Tests and Airflow Balancing required for Fire Certificate (FC) applications and renewals.

• Strategic Regional Support: Based in Kuala Lumpur, we provide professional pressurization services for Grade-A office towers, luxury condominiums, and hospitals across the region.

Is your high-rise escape route protected by a compliant pressurization system? Contact EKG M&E Sdn Bhd today for a professional fire-rated ducting audit and technical proposal.
