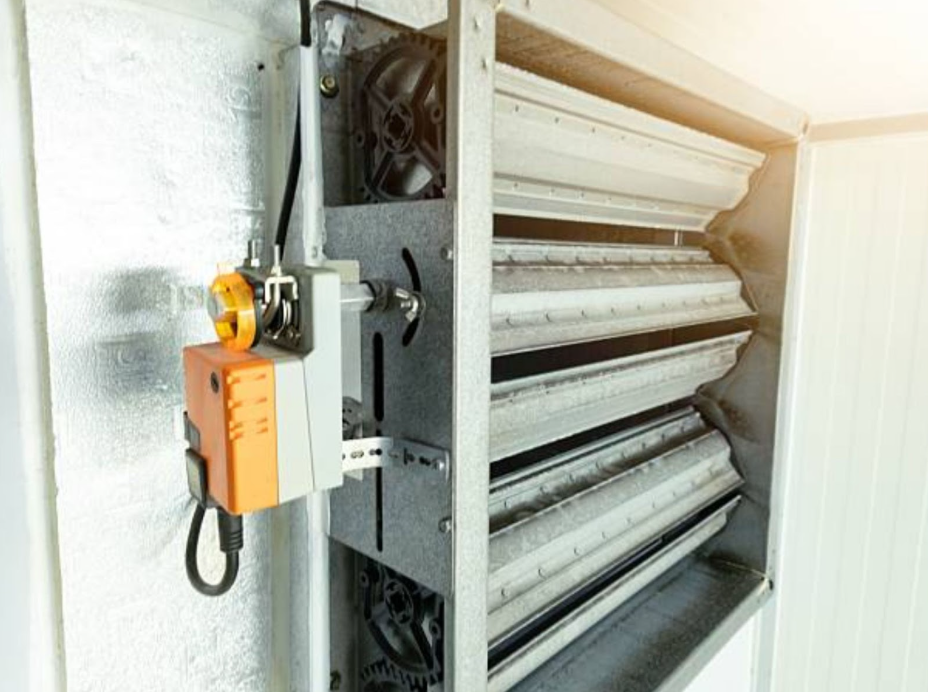

Automated Process Damper Integration by EKG M&E Sdn Bhd

In the high-stakes industrial environments of Selangor and the Klang Valley, manual airflow control is often too slow and imprecise for critical process exhaust. EKG M&E Sdn Bhd provides Automated Process Damper Integration, replacing manual levers with high-torque, precision-controlled actuators. These systems are interlocked with your industrial machinery, gas sensors, and Building Management System (BMS) to ensure that hazardous fumes are captured at the exact moment of generation while optimizing fan energy consumption.

---

Engineering Selection by Application

We specify damper types and actuator protocols based on the chemical "aggressiveness," temperature, and pressure of your specific process.

1. Scrubbing and Treatment Optimization (Chemical Processing)

For facilities using chemical scrubbers, the airflow must be precisely balanced to ensure the "Dwell Time" inside the scrubber is sufficient for neutralizing fumes.

• Modulating Polypropylene Dampers: For acidic streams, we utilize chemically inert plastic dampers fitted with 0% to 100% modulating actuators. This ensures the exhaust volume matches the scrubber's treatment capacity perfectly.

• Real-Time Pressure Feedback: Our automated dampers adjust based on the static pressure within the duct, compensating for filter loading or changes in fan speed to maintain a constant "Capture Velocity" at the source.

2. Cleanroom and Sterile Lab Exhaust (Zonal Isolation)

In pharmaceutical or semiconductor cleanrooms, air must be prevented from back-flowing during maintenance or equipment failure.

• Zero-Leakage Bubble-Tight Dampers: We integrate specialized dampers with inflatable or heavy-duty gaskets that provide a 100% airtight seal.

• Interlocked Safety Actuators: In the event of an emergency or tool shutdown, the actuators trigger instantly to isolate the specific branch, preventing cross-contamination between different cleanroom zones.

3. High-Temperature and Flammable Vapor Extraction

Industrial ovens, furnaces, and solvent-heavy processes require dampers that can withstand extreme heat and prevent the spread of fire.

• Fire-Rated Stainless Steel Dampers: We utilize Grade 316 stainless steel dampers fitted with BOMBA-certified thermal actuators.

• Fail-Safe "Spring Return" Logic: We configure actuators to automatically drive the damper to a "Safe State" (either fully open for emergency heat exhaust or fully closed for fire containment) in the event of a power loss.

---

Critical Installation and Integration

As an industrial M&E specialist, EKG ensures the digital control layer is perfectly synchronized with the mechanical ducting:

Shaft Alignment and Sealing:

Process dampers often operate under high static pressure. We utilize precision-machined shafts and reinforced bearings to ensure the actuator can move the blades smoothly without "binding." All shaft penetrations are sealed with chemical-resistant bushings to prevent toxic fume leakage.

Machinery Interlock (PLCs & Modbus):

We move beyond simple thermostats. Our dampers are often interlocked directly with your production line's PLC (Programmable Logic Controller). When a machine starts its cycle, the damper opens instantly; when the cycle ends, the damper closes (or throttles down), saving significant energy by not exhausting conditioned factory air unnecessarily.

Corrosion-Proof Actuator Housing:

In acidic environments, the electronics of the actuator can be destroyed by ambient fumes. We utilize IP66 or NEMA 4X rated enclosures and specialized coatings to protect the motor and control boards from chemical attack, ensuring long-term reliability.

---

Performance and Durability Matrix

Feature	Manual Process Damper	EKG Automated Integration
Control Logic	Human Dependent (Slow)	Sensor/PLC Driven (Instant)
Precision	Approximate	Degrees of Accuracy (0-100%)
Energy Efficiency	Low (Often left open)	High (Demand-Based Exhaust)
Safety Interlock	None	BOMBA / Fire System Linked
Chemical Resistance	Variable	Matched to Process (PVC/SS316)

---

Why Choose EKG M&E Sdn Bhd?

• Process Awareness: We don't just "fit a motor." We analyze your production cycles and chemical loads to ensure the damper timing and material selection protect your workers and your equipment.

• Total Control Integration: Our engineers are experienced in bridging the gap between heavy metal ducting and digital control protocols (Modbus, BACnet, etc.).

• Strategic Selangor Support: Based in Kuala Lumpur, we provide site audits for "unbalanced" exhaust systems, actuator retrofits for older industrial plants, and annual calibration services for mission-critical dampers.

Is your industrial exhaust system wasting energy or failing to capture fumes effectively? Contact us today for a professional automated damper audit and technical proposal.
