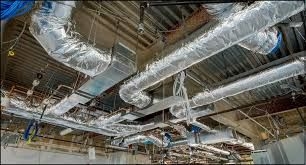

Air Ducting Installation by EKG M&E Sdn Bhd

In the commercial and industrial infrastructure of KL and Selangor, air ducting is the critical "vascular system" of a building. EKG M&E Sdn Bhd provides professional Air Ducting Installation services that focus on airtight integrity, structural safety, and optimized fluid dynamics. We specialize in transforming complex M&E drawings into high-performance physical networks that ensure every kilowatt of cooling reaches its intended destination without loss.

Engineering Selection by Application

We select ducting materials and fabrication methods based on the specific airflow velocity and static pressure requirements of your facility.

1. Corporate Offices and Retail (Comfort Ventilation)

For high-traffic indoor environments, the priority is silent operation and precise temperature distribution.

• Low-Velocity Ducting: We design larger cross-sectional areas to reduce air speed, which significantly lowers mechanical noise (decibel levels) in working areas.

• Insulated GI Ducting: We utilize heavy-duty Galvanized Iron (GI) wrapped in high-density insulation to prevent condensation "sweating" in the humid Malaysian climate.

2. Industrial Plants and Factories (High-Volume Extraction)

For industrial zones, the ducting must withstand high static pressure and abrasive environmental factors.

• Heavy-Gauge Fabrication: We use thicker GI sheets (Gauge 20-24) to prevent duct "panting" or booming when high-capacity fans are engaged.

• Spiral Round Ducting: For long-distance spans, we often recommend spiral ductwork for its superior rigidity and lower friction loss compared to traditional rectangular profiles.

3. Healthcare and Laboratories (Specialized Hygiene)

In zones where air purity is non-negotiable, the ducting must be a contamination-free zone.

• Stainless Steel (SS304/316): For corrosive or sterile environments, we install stainless steel ductwork that resists chemical degradation and microbial growth.

• HEPA Filter Housing Integration: Our installations include precision-engineered housings for HEPA filters at the terminal points to ensure "Cleanroom" grade air delivery.

Critical Installation and Integration

As a specialist M&E contractor, we treat ducting as a precision-engineered system rather than a simple metal pipe:

Structural Rigging and Safety:

We don't just "hang" ducts. We engineer support systems using threaded rods and unistrut channels anchored directly to the building's structural slab. This ensures the ductwork remains perfectly level and secure, even under the vibration of high-speed air movement.

Airtight Sealing (Zero-Leakage Policy):

Energy waste in KL buildings is often caused by leaky duct joints in the ceiling plenum. We utilize professional flange systems (TDF/TDC) and high-grade industrial sealants at every joint to ensure your cooling energy isn't wasted on cooling the empty space above your ceiling.

Airflow Balancing (TAB):

Post-installation, our engineers perform Testing, Adjusting, and Balancing (TAB). We utilize manual volume control dampers (VCDs) to ensure that the air volume (CMH) at the furthest diffuser is exactly the same as the one closest to the AHU.

Performance and Durability Matrix

Feature	Basic "Handyman" Ducting	EKG M&E Engineering Grade
Joint Integrity	Basic tape / Poorly fitted slips	TDF Flanges with Neoprene Gaskets
Air Leakage	Up to 20% loss	Under 3% (SMACNA Class A)
Support Interval	Often over-spanned (causes sagging)	Precision-spaced (prevents vibration)
Material Quality	Low-grade zinc coating	High-Z Galvanized / Stainless Steel
Flow Dynamics	Rough transitions (high turbulence)	Smooth-radius elbows & transitions

Why Choose EKG M&E Sdn Bhd?

• Blueprint Translation: Our team is skilled at reading complex M&E layouts, ensuring that the physical installation matches the engineer’s original design intent for airflow and static pressure.

• High-Elevation Capability: We are equipped for complex internal rigging in malls, high-rise service voids, and industrial rooftops, prioritizing site safety and structural integrity.

• Local Technical Support: Based in Kuala Lumpur, we provide rapid site surveys, rectification of "sweating" ducts, and full-system upgrades for aging commercial infrastructures across the Klang Valley.
