VSD Power Cable Termination & Glanding | High-Frequency EMI Defense by EKG

In the 2026 industrial landscape of Kuala Lumpur, VSD Power Cable Termination is the single most critical point of failure for high-performance motor systems. While a Variable Speed Drive (VSD) saves energy, its output consists of high-voltage PWM (Pulse Width Modulation) pulses that create massive electromagnetic interference (EMI). Without specialized EMC Glanding and 360-degree shielding, this "electrical noise" will leak into your building's Wi-Fi, CCTV, and BMS, and can even cause your motor bearings to fail prematurely.

As part of a Ventilation Systems Audit, EKG provides the precision termination and high-frequency grounding required to keep your power clean and your motors healthy.

---

1. The Physics of "360-Degree" Shielding

VSD output cables (U, V, W) act as high-power radio transmitters. Standard "Pigtail" grounding (twisting the shield into a wire) is ineffective because it creates high "inductive reactance" at high frequencies.

• The Faraday Cage Effect: A continuous copper-tape or braided shield traps the EMI inside the cable.

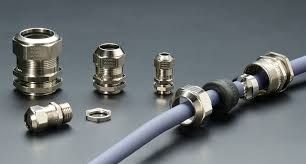

• The EMC Gland: A specialized nickel-plated brass gland provides a 360-degree circular contact between the cable shield and the metal enclosure. This ensures the high-frequency noise is "drained" instantly to the ground plane before it can radiate.

• Common Mode Current: Proper glanding provides a low-impedance return path for noise, preventing it from traveling through the motor bearings—the leading cause of Bearing Fluting (EDM).

---

2. The EKG "EMI-Shield" Termination Protocol

We treat every VSD termination as a specialized "Clean-Signal" procedure, adhering to Suruhanjaya Tenaga (ST) safety codes:

• VFD-Rated Shielded Cable: We only use symmetrical 3-core cables with a 100% coverage shield. Standard XLPE or PVC cables are insufficient for the "Reflected Wave" voltage spikes ($>1000\text{V}$) generated by VSDs.

• 360-Degree Gland Installation: At both the VSD enclosure and the motor terminal box, we install EMC Glands. We strip the outer jacket to expose the braid, ensuring metal-to-metal contact around the entire circumference.

• Star-Point Grounding: We return the cable's internal ground wires directly to the VSD’s "PE" terminal. This creates a "Closed Loop" for noise, preventing it from entering the building's main earth and tripping RCDs.

• Calibrated Torque Termination: We use Digital Torque Wrenches to meet manufacturer specs (e.g., 2.5 Nm to 4.5 Nm). In KL’s 90% humidity, a loose connection creates a high-resistance "Hot Spot" that leads to charred terminals and phase loss.

---

3. The Energy & Operational Impact: The Cube Law

Precision termination is the foundation for maintaining the Fan Affinity Laws efficiency over a 15-year lifecycle.

• Reducing "Parasitic Drag": Improper grounding causes high-frequency "Eddy Currents" that heat up the motor windings. By cleaning the signal through proper glanding, the motor runs 5°C to 10°C cooler, improving its efficiency ($n$).

• The Logic: A cooler, quieter motor allows the VSD to run at the absolute minimum speed required for the building load.

Because of the Cube Law, if our shielding allows your AHU to run stably at 40Hz instead of 50Hz (without electronic "jitter"), your energy consumption drops by nearly 50%.

---

4. VSD Termination Health Matrix

Symptom	Diagnosis	EKG Restoration Action
CCTV / Wi-Fi Interference	Radiated EMI / No Shielding	Install Shielded VFD Cable & EMC Glands
High-Pitched Bearing "Shriek"	Bearing Arcing (EDM)	Audit Grounding & Install Shaft Ring
"Ground Fault" (GFF) Trips	Leaky Insulation / Poor Gland	Check Shield Continuity & Termination
Charred Terminal Insulation	Loose Connection / High Resistance	Re-Terminate with Calibrated Torque
BMS "Comm Loss" Errors	Common Mode Noise Interference	360-Degree Star-Point Ground Audit

---

5. Why Trust EKG for Termination & Glanding?

• Mechanical Restoration Path: We don't just "fix the wires"; we are experts in Mechanical Fan Overhauls. We ensure your fan's bearings are not just replaced, but protected from future electrical damage.

• VFD-Energy ROI Projection: We provide a report showing how preventing a single RM 10,000 motor failure and associated downtime pays for the shielding upgrade instantly.

• 2026 Technical Standards: All installations are verified against IEEE 519 and MS1525 power quality and energy efficiency standards.

• BOMBA Fire-Override Audit: We ensure the shielding doesn't interfere with the "Fire-Mode" signal, ensuring the fan ramps to 100% speed during an emergency.
