VSD Harmonic Filter Installation | Power Quality Restoration by EKG

In the modern industrial and commercial landscape of 2026 Kuala Lumpur, Variable Speed Drives (VSDs) are essential for energy savings. However, their high-speed electronic switching creates "Electrical Noise" known as Harmonic Distortion. Left unfiltered, these harmonics travel back into your building's grid, causing transformers to overheat, circuit breakers to trip mysteriously, and sensitive office electronics to fail.

As part of a Ventilation Systems Audit, EKG provides the harmonic analysis and filter integration required to keep your power "clean" and compliant with TNB's Electricity Supply Regulations.

---

1. The Physics of "Dirty Power"

VSDs are "Non-Linear Loads." They draw current in sharp pulses rather than a smooth sine wave:

• Total Harmonic Distortion (THDi): Unfiltered VSDs can have a THDi of 35% to 100%. This creates "Eddy Currents" in your building's transformers, causing them to run dangerously hot even when they aren't at full capacity.

• Neutral Overheating: Harmonics (especially the 3rd and 9th) add up in the neutral wire. In many KL buildings, this leads to charred neutral bars and fire risks.

• Voltage Notching: High-frequency harmonics can distort the voltage waveform, causing "Ghost Faults" in your BMS, CCTV, and elevator control systems.

---

2. The EKG "Clean-Grid" Integration Protocol

We treat harmonic mitigation as a specialized electrical engineering task:

• Power Quality Audit (IEEE 519): We use Class-A Power Quality Analyzers to map your building's harmonic profile. We identify if you are exceeding the 5% to 8% THDi limit mandated by TNB for industrial and commercial consumers.

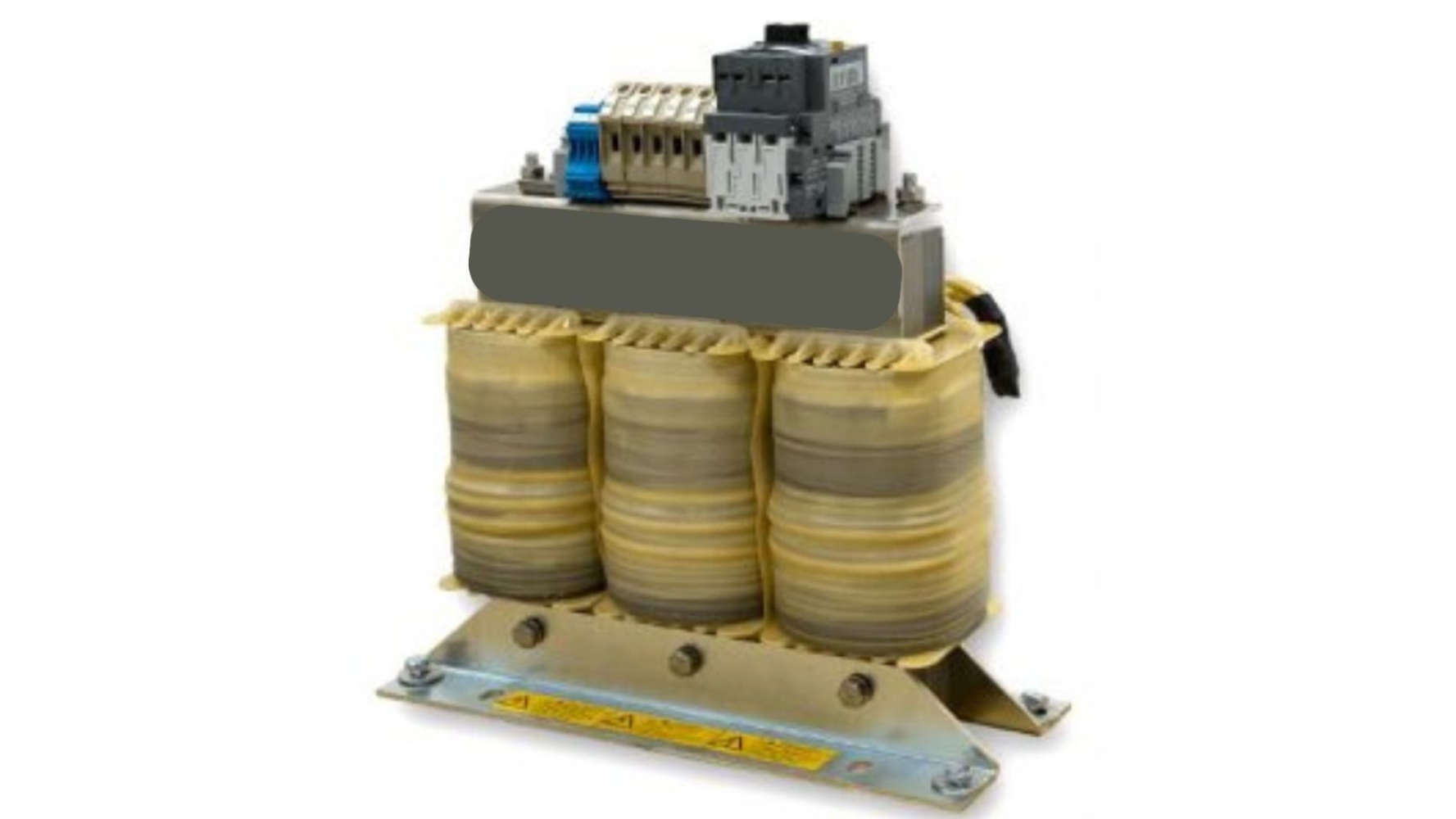

• Passive Filter Installation (Line Reactors): For standard AHUs and pumps, we install 3% or 5% Impedance Line Reactors. These act as a "Magnetic Damper," smoothing out the current spikes and reducing THDi by roughly 30% to 50%.

• Active Harmonic Filters (AHF): For "Mission Critical" sites like data centers or hospitals in KLCC, we install AHFs. These devices "inject" a counter-signal that cancels out harmonics in real-time, bringing your distortion down to below 5%.

• Capacitor Bank Protection: Harmonics can cause your Power Factor Correction (PFC) capacitors to explode due to "Resonance." We install Detuned Reactors to shield your capacitor banks from VSD-induced noise.

---

3. The Energy & Operational Impact: The Cube Law

A "Clean" electrical system is a direct multiplier for the Fan Affinity Laws.

• Reducing "Parasitic Heat": Harmonics waste energy as heat in cables and motors. By filtering them, we lower your building's "Apparent Power" ($kVA$).

• The Logic: A motor running on clean power is more efficient ($n$). This allows your VSD to run at the absolute minimum frequency ($Hz$) required for the building load.

Because of the Cube Law, if our filtering allows your system to run stably at 40Hz instead of 50Hz, your motor's energy consumption drops by nearly 50%.

---

4. Harmonic Health Matrix

Symptom	Diagnosis	EKG Action Required
Hot Transformers / Cables	High Harmonic Current	Install Line/Passive Filters
Random Breaker Tripping	Nuisance Harmonic Peaks	Harmonic Analysis & AHF Install
BMS / CCTV "Ghost" Faults	Voltage Waveform Distortion	Active Filtering & Shielding Audit
Exploding PF Capacitors	Harmonic Resonance	Install Detuned Reactors
High TNB Surcharges	Low Power Factor / Harmonics	Full Power Quality Restoration

---

5. Why Trust EKG for Harmonic Mitigation?

• Mechanical Restoration Path: We don't just "plug in" filters; we are experts in Mechanical Fan Overhauls. We ensure your motor is healthy enough to handle the filtered power without internal vibration.

• VFD-Energy ROI Projection: We provide a "Before & After" report showing the reduction in kVA and kW losses, proving the Ringgit savings on your TNB bill.

• 2026 Technical Standards: All installations are verified against IEEE 519-2022 and TNB's Power Quality guidelines.

• KL/Selangor Rapid Response: We stock standard 3% and 5% reactors for immediate installation in facilities facing "Drive Fault" or "Overheat" issues.
