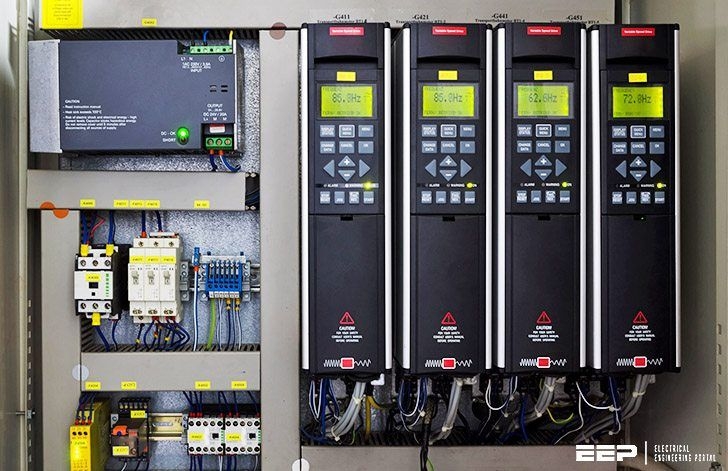

Variable Speed Drive (VSD) Fan Tuning by EKG | Digital Airflow Optimization

A Variable Speed Drive (VSD)—also known as a Variable Frequency Drive (VFD)—is the brain of a modern HVAC system. However, simply installing a VSD isn't enough. Without precision tuning, a drive can actually cause harmonic vibration, motor overheating, or "resonance" that shakes the fan assembly apart.

As part of a Mechanical Fan Overhaul, EKG tunes your VSD to the specific "mechanical signature" of your fan, ensuring maximum energy savings without risking equipment failure.

---

1. The Physics of Tuning: The Cube Law

The primary reason to tune a VSD is to exploit the Cube Law of fan physics. This law states that the power required by a fan is proportional to the cube of its speed.

• The Math: If you reduce a fan's speed by just 20%, the power consumption drops by nearly 50%.

• The Goal: We tune the VSD parameters to find the "Sweet Spot"—the lowest possible RPM that still maintains the building's required static pressure and CO2 levels.

---

2. Identifying and Avoiding "Resonance Frequencies"

Every mechanical fan has a "Natural Frequency"—a specific speed where the fan wants to vibrate violently. If a VSD stays at this speed, the bearings will fail within weeks.

• Frequency Skipping: We use vibration analyzers to find these "Danger Zones." We then program the VSD to "Skip" these frequencies, jumping over the vibration spikes instantly during ramp-up.

• Ramp Profile Optimization: We set "Soft Start" and "Soft Stop" profiles. This eliminates the "Belt Snap" and "Torque Shock" caused by old-fashioned across-the-line starters.

---

3. The EKG "Precision-Drive" Tuning Protocol

We don't just "auto-tune" the drive; we perform a deep mechanical-electrical integration:

• V/Hz Curve Customization: We adjust the Voltage-to-Frequency ratio to ensure the motor doesn't "cog" or overheat at low speeds (common in older motors in KL's high heat).

• Carrier Frequency Adjustment: We tune the "switching frequency" of the VSD. If set too high, it causes motor noise; if too low, it can cause electrical "pitting" in the bearings.

• PID Loop Calibration: We synchronize the VSD with your building's pressure sensors. This prevents "Hunting"—where the fan constantly speeds up and slows down, wasting energy and wearing out the drive.

---

4. Technical VSD Tuning Matrix

Parameter	Default Setting	EKG Optimized Setting	Benefit
Acceleration Time	5-10 Seconds	30-60 Seconds	Reduces Belt & Bearing Stress
Skip Frequencies	None	Custom Defined	Eliminates Structural Vibration
DC Braking	Off	Tuned for Windmilling	Prevents "Overvoltage" Trips
Energy Optimizers	Disabled	Active Flux Control	Additional 2-5% Energy Savings

---

5. Why Trust EKG for VSD Tuning?

• Harmonic Mitigation: We inspect your electrical system for "Noise." If the VSD is distorting your power, we install Line Reactors to protect your sensitive building electronics.

• In-Situ Vibration Audit: We perform a vibration sweep across the entire 0-50Hz range. We provide a report proving the fan is safe to operate at every programmed speed.

• Thermal Post-Audit: We use infrared cameras to check the motor "End-Turns." Low-speed operation can reduce motor cooling; we ensure your motor stays within safe thermal limits.

• BMS Integration: We don't just tune the drive in isolation. We ensure it communicates perfectly with your Building Management System for real-time energy tracking.
