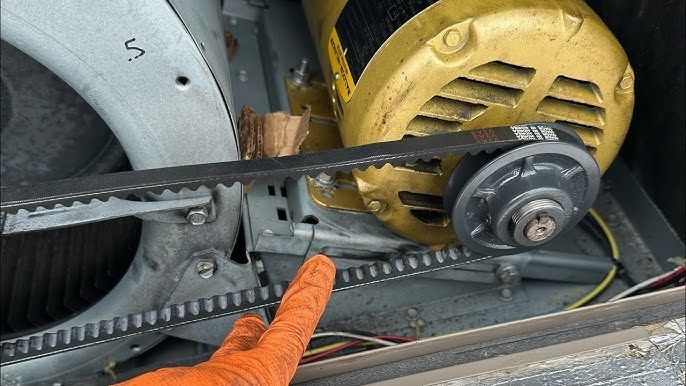

Fan Pulley and Sheave Replacement by EKG | Mechanical Fan Overhaul

In a belt-driven ventilation system, the pulleys (also known as sheaves) are the gears that determine the fan's RPM and torque. Over years of operation, the friction of the V-belts wears down the "groove walls" of the pulley, turning a sharp V-shape into a rounded U-shape. This leads to belt slippage, excessive heat, and a significant drop in airflow.

As part of a Mechanical Fan Overhaul, EKG provides precision pulley replacement and laser alignment to ensure 100% of your motor's power reaches the fan impeller.

---

1. Identifying Worn Sheaves

We don't just "look" at a pulley; we use precision Groove Gauges to detect microscopic wear:

• "Dishing" or Cupping: When the sidewalls of the pulley groove become concave. This causes the belt to "bottom out," losing its grip and squealing.

• Polished/Shiny Grooves: A sign of chronic belt slip. The heat generated can reach 100°C, glazed the belts and making them brittle.

• Wobble or Eccentricity: If the pulley was improperly installed (hammered on), it may develop a "runout" that vibrates the entire fan assembly.

• Bore Wear: If the Taper-Lock bushing has loosened, the pulley can "chatter" on the shaft, eventually "scoring" the metal beyond repair.

---

2. The EKG "Precision-Drive" Protocol

Replacing a sheave is an opportunity to tune the fan for 2026 energy standards:

• Taper-Lock Integration: we replace old "Fixed Bore" pulleys with modern Taper-Lock bushings. This ensures a 360-degree "shrink fit" on the shaft, eliminating vibration and making future removals effortless.

• Material Selection: For high-load commercial fans, we use Grade 35 Cast Iron sheaves, which are dynamically balanced at the factory to reduce centrifugal stress.

• Ratio Optimization: If your building’s airflow needs have changed, we can calculate a new Pulley Ratio to speed up or slow down the fan without needing a new motor.

• Matched Belt Sets: We never install new pulleys with old belts. We provide Matched Sets (from the same production batch) to ensure equal tension across all grooves.

---

3. The Energy Impact: The Cube Law

A worn pulley is an "Energy Thief." If a belt slips by even 3%, you are paying for electricity that is being turned into heat and rubber dust rather than airflow.

• Friction Efficiency: New, correctly aligned sheaves restore the mechanical efficiency of the drive to 98%+.

• The Math: This efficiency allows your Variable Frequency Drive (VFD) to maintain the required CFM at a lower frequency (Hz). According to the Cube Law, a 20% reduction in fan speed results in a nearly 50% reduction in power consumption.

---

4. Technical Comparison: Standard vs. EKG Overhaul

Feature	Basic "Belt Change"	EKG Mechanical Overhaul
Pulley Check	Visual Only	Groove Gauge & Runout Audit
Alignment	String-line / Straight-edge	Dual-Beam Laser Alignment
Tensioning	"Thumb Press" method	Sonic Tension Meter (Hz)
Bushing	Standard Set-Screws	Precision Taper-Lock Bushings
Final Result	Temporary fix	Documented 5-10 Year Service Life

---

5. Why Trust EKG for Pulley Replacements?

• Dual-Beam Laser Alignment: After installation, we align the sheaves to within 0.5mm of deviation. This eliminates the "Side-Load" that causes 80% of premature bearing failures.

• Sonic Tension Verification: We use digital acoustic meters to "tune" your belts to the exact frequency ($Hz$) required by the manufacturer, ensuring zero slip and maximum belt life.

• Vibration Signature Analysis: We take a "Vibration Fingerprint" post-installation. We look for the "2X RPM" peak that indicates whether the pulleys are perfectly collinear.

• Thermal Imaging Audit: We run the fan for 30 minutes and use infrared cameras to ensure the sheaves stay cool, proving that there is no energy-wasting friction.
