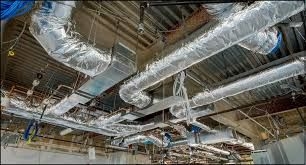

HVAC Duct Installation | 2026 High-Performance Air Distribution

In 2026, HVAC Duct Installation in Malaysia has transitioned from a standard construction task to a precision engineering requirement. Under the Energy Efficiency and Conservation Act (EECA) 2024 and the March 2026 DOSH ICOP IAQ, the "Air Path" is the most critical factor in a building’s Building Energy Index (BEI). A poorly installed duct—leaky, uninsulated, or turbulent—forces your Variable Speed Drive (VSD) to over-consume power, directly violating federal energy mandates.

At EKG M&E, with 34 years of mechanical depth, we provide SMACNA-compliant installations that prioritize Laminar Flow and Thermal Integrity, ensuring your facility remains audit-ready and energy-efficient.

---

1. 2026 Compliance: The "Audit-Ready" Air Path

Modern HVAC installations must meet strict 2026 federal criteria to avoid legal and operational penalties:

• SMACNA Leakage Class A: Under the EECA 2024, distribution losses must be minimized. We utilize TDF/TDC integral flanges and machine-injected gaskets to ensure leakage is <3%, preventing the "Energy Bleed" that ruins ROI.

• The 70% RH Fungal Barrier: In Malaysia's humidity, "Duct Sweating" is the primary cause of mold. We install Closed-Cell Nitrile or PIR (Pre-Insulated Resin) systems to ensure the external surface never reaches the Dew Point, keeping your Total Fungal Count (TFC) below the 500 cfu/m³ limit set by DOSH 2026.

• BOMBA 2026 Certification: For smoke spill and kitchen exhaust, we install BS 476 Part 24 fire-rated ducting, complete with certified fire-stopping at every wall penetration.

---

2. Specialized 2026 Installation Materials

With 34 years of experience, we select the "Vascular Material" based on your specific facility needs:

Material Type	Primary Application	2026 Specialist Benefit
Galvanized Iron (G.I.)	Industrial / Main Trunks	G90 Zinc Coating / Rigid & Durable
PIR (Pre-Insulated)	Grade-A Offices / Retail	80% Lighter / Thermal Cond. $0.022\ W/m\cdot K$
Stainless Steel (316)	Kitchens / Labs / Pharma	Corrosion-Proof / High-Temp Resistance
Spiral Round Ducting	Exposed "Industrial" Design	Lowest Friction / Superior Aesthetics
Flexible Ducting	Terminal Connections	Fully Taut / R-8.0 Insulation

---

3. EECA 2024: The "Cube Law" & Aerodynamic ROI

Under the EECA 2024, "System Effect" (losses due to poor installation geometry) is a reportable energy waste.

• Laminar Flow Geometry: We avoid sharp 90-degree bends. Our installations utilize Long-Radius Elbows and Turning Vanes to ensure air moves like a fluid, not a turbulent gas.

• The Cube Law Advantage: By removing "Choke Points" in the installation, we allow the VSD to run the fan at a lower frequency.

• The Math: Following the Cube Law, a 20% reduction in fan speed (made possible by a low-friction, airtight installation) results in a nearly 50% reduction in power consumption.

---

4. 2026 Installation Quality Matrix

Feature	Traditional Installation	EKG 2026 Specialist Install
Joint Sealing	Duct Tape / Basic Silicone	TDF Flanges / Non-Drying Mastic
Hanger Systems	Basic Wires / Unistrut	Vibration-Isolated / Seismic-Braced
Alignment	"Field-Adjusted" (Kinked)	BIM-Coordinated / Laser-Aligned
Insulation	Sagging Fiberglass Wrap	Sealed Nitrile / PIR / Hard-Clad
Validation	Visual Check	Duct Leakage Testing (DLT) Certified

---

5. Commissioning: The "Precision-Balance" Phase

A professional installation is only complete when it is balanced. Our 2026 service includes:

• Digital Airflow Traverse: Using NIST-traceable Pitot tubes to verify that the CFM at the "Index Run" (the furthest vent) matches the design.

• Static Pressure Mapping: Ensuring the fan is operating on its optimal curve to prevent motor burnout.

• VSD Optimization: Programming the BMS with the exact static pressure setpoints derived from the physical installation to maximize 2026 energy savings.

---

Why Trust EKG M&E for HVAC Ducting?

• 34 Years of Engineering Depth: We don't just "hang metal." We understand the Psychrometrics of the Malaysian climate. We ensure your system handles the 90% RH latent loads without "sweating" or mold.

• Turnkey BIM Coordination: We identify "Clash Points" with other services (sprinklers, cable trays) in the digital phase, preventing the on-site "offsets" that create turbulence.

• Audit-Ready Documentation: We provide the Material Certificates and Leakage Test Reports required for your 2026 federal compliance logs.
