Ductwork Acoustic Lining & Silencers | 2026 Noise Control Standards

In 2026, Ductwork Acoustic Lining and Silencers are critical components for the "Premium Indoor Experience" in Kuala Lumpur. Under the March 2026 DOSH ICOP IAQ and the EECA 2024, noise is recognized as a physical pollutant that impacts cognitive function and health. Furthermore, as buildings utilize higher-pressure Variable Speed Drives (VSD) to hit energy targets, the resulting "fan surge" and "air whistle" must be engineered out of the system.

At EKG M&E, with 34 years of mechanical depth, we provide NC-30 (Noise Criteria) compliant solutions that suppress AHU rumble and "Cross-Talk" without creating the high static pressure that triggers 2026 energy penalties.

---

1. 2026 Compliance: The "Silent Hygiene" Mandate

In 2026, acoustic treatment must balance noise reduction with the strict hygiene requirements of the DOSH IAQ code:

• Fiber Erosion Prevention: Traditional fiberglass lining is largely obsolete for 2026 Grade A offices because it can shed microscopic fibers—a violation of the Total Suspended Particulate (TSP) limits. We utilize Tissue-Faced or Mylar-Encapsulated linings that are "Erosion-Proof" up to 20 m/s.

• Anti-Microbial Surfaces: Because acoustic lining is porous, it can trap moisture. We provide Silver-Ion (Ag+) treated acoustic foam that prevents fungal growth, keeping your Total Fungal Count (TFC) below the legal 500 cfu/m³.

• STC (Sound Transmission Class): We engineer "Cross-Talk Silencers" for boardrooms and sensitive clinics to ensure private conversations don't travel through the ductwork to adjacent rooms.

---

2. Technology: 2026 Sound Suppression Solutions

With 34 years of experience, we select the correct "Acoustic Path" based on the frequency of the noise:

A. Internal Acoustic Lining

• Best For: High-frequency "whistle" and mid-range "hiss."

• Material: 2026-standard Closed-Cell Elastomeric Foam (like Armaflex) or High-Density PIR.

• Benefit: Provides both thermal insulation and sound absorption in a single application.

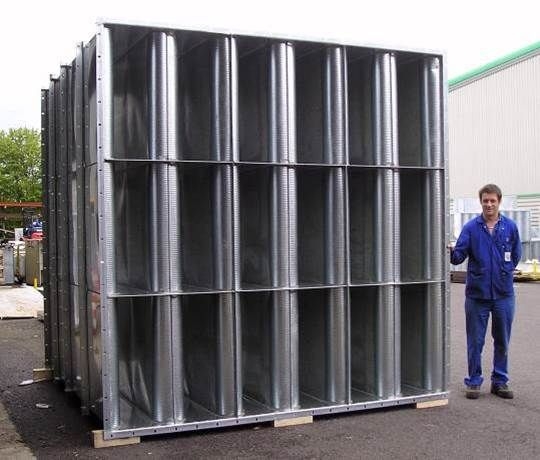

B. Duct Silencers (Sound Attenuators)

• Best For: Low-frequency AHU "rumble" and fan motor noise.

• Design: We utilize Baffle-Style Silencers (Rectangular or Circular). The air passes between acoustic "pods" that absorb energy.

• 2026 Engineering: We use Aerodynamic Nose-Cones on the baffles to minimize "Regenerated Noise" caused by the air hitting the silencer itself.

---

3. EECA 2024: The "Static Pressure Tax"

Under the EECA 2024, every Pascal of "Static Pressure Drop" (Pd) is a cost. A poorly designed silencer can act like a "choke point," forcing the fan to work harder.

• Laminar Flow Design: We utilize CADD-modeled silencers with low-pressure-drop geometry.

• The Cube Law Advantage: By selecting a "Low-Loss" silencer, we allow the Variable Speed Drive (VSD) to run at a lower frequency.

• The Math: Following the Cube Law, a $20\%$ reduction in fan speed (made possible by low-friction acoustic design) results in a nearly 50% reduction in power consumption, helping you hit your 2026 Building Energy Index (BEI) targets.

---

4. 2026 Acoustic Performance Matrix

Noise Type	Source	2026 Specialist Fix
Low Frequency Rumble	AHU Fan / Compressor	Dissipative Baffle Silencers
High Frequency Whistle	High-Velocity Air / VAVs	Perforated Internal Lining
"Cross-Talk"	Shared Duct Between Rooms	L-Bend Acoustic Boot / Attenuator
Vibration Hum	Rigid Duct Connections	Canvas Flexible Connectors
Regenerated Noise	Sharp Elbows / Dampers	Turning Vanes & Radius Transitions

---

5. Acoustic Commissioning: The "Sound-Check" Audit

A professional installation is verified by data. Our 2026 maintenance and commissioning includes:

• Octave Band Analysis: We measure noise at various frequencies ($63\text{ Hz}$ to $8\text{ kHz}$) to ensure the silencer is working across the entire spectrum.

• Insertion Loss Testing: We verify the "Before vs. After" noise reduction to provide the Audit-Ready Documentation required for high-end green building certifications.

• Integrity Inspection: We check for "Lining Sag"—where old internal insulation has collapsed, creating an airflow blockage and an IAQ risk.

---

Why Trust EKG M&E for Acoustic Control?

• 34 Years of Engineering Depth: We understand the "Physics of Sound." We don't just "stuff ducts with foam"; we calculate the Regenerated Noise and Self-Noise of the system to ensure the fix doesn't create a new problem.

• Turnkey BIM Coordination: We model the silencers in your 3D building plan to ensure they fit in the ceiling plenum without clashing with other services.

• Compliance Experts: We provide the Energy ROI and Noise Level Reports required for your 2026 federal compliance.
