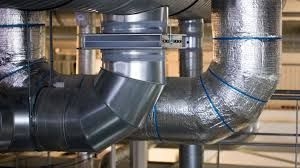

Air Tightness Testing for Ductwork | 2026 Leakage Validation

In 2026, Air Tightness Testing (ATT) for ductwork is a mandatory verification step for any building aiming for EECA 2024 compliance or Green Building Index (GBI) certification. In Malaysia’s humid climate, a leaky duct doesn't just waste energy; it creates "Cold Spots" in ceiling voids that lead to condensation and mold—a direct violation of the March 2026 DOSH ICOP IAQ standards.

At EKG M&E, with 34 years of mechanical depth, we provide Duct Leakage Testing (DLT) using calibrated orifice flow meters to ensure your system meets the SMACNA Leakage Class A standard.

---

1. 2026 Compliance: The "3% Leakage" Threshold

The EECA 2024 has criminalized excessive energy waste in large facilities. Duct leakage is often the "hidden thief" that prevents a building from hitting its Building Energy Index (BEI) targets.

• SMACNA Class A (High Pressure): For 2026 VAV systems, leakage must be $<3\%$ of the design airflow.

• The Mold Risk: Leaking cold air ($14^\circ\text{C}$) hits unconditioned ceiling air ($30^\circ\text{C}$), reaching the Dew Point instantly. This causes "ceiling rain" and fungal growth.

• Audit-Ready Certification: We provide the official Leakage Test Report required by the Registered Energy Manager (REM) for federal 2026 filing.

---

2. The Testing Process: "Pressure Decay & Flow"

With 34 years of experience, we follow a rigorous ISO-aligned testing methodology:

1. Section Sealing: We isolate a section of the duct using heavy-duty bladders or temporary end-caps.

2. Pressurization: A specialized Duct Testing Fan (with a calibrated orifice plate) pressurizes the duct to its operating pressure (e.g., $500\text{ Pa}$ or $1000\text{ Pa}$).

3. Measurement: We measure the airflow ($Q$) required to maintain that pressure. If $Q$ is high, the duct is "Leaky."

4. Leak Detection: If the test fails, we use Smoke Generators (Non-Toxic) to visually identify the leaking seams, flanges, or access doors.

---

3. EECA 2024: The "Cube Law" of Leakage

Under the EECA 2024, a leaky duct forces the Variable Speed Drive (VSD) to ramp up the fan speed to compensate for the lost air at the diffusers.

• Compounding Waste: A $10\%$ air leak doesn't just waste $10\%$ energy; it forces the fan to run significantly faster to maintain static pressure.

• The Cube Law Advantage: By sealing leaks and passing the ATT, we allow the fan to run at its true design speed.

• The Math: Following the Cube Law, a $20\%$ reduction in fan speed (made possible by stopping leaks) results in a nearly 50% reduction in power consumption.

---

4. 2026 Leakage Class Matrix (SMACNA/EUROVENT)

Duct Type	Pressure Class	Allowable Leakage	2026 Audit Status
Low Pressure	Up to $500\text{ Pa}$	Class C ($10\% \text{--} 15\%$)	Minimal Compliance
Medium Pressure	$500\text{ Pa -- } 1000\text{ Pa}$	Class B ($5\%$)	Standard Requirement
High Pressure	Above $1000\text{ Pa}$	Class A ($<3\%$)	Elite / EECA Compliant
Critical Zones	Hospitals/Labs	Zero Leakage (Vacuum Test)	MOH/DOSH Mandated

---

Why Trust EKG M&E for Air Tightness Testing?

• 34 Years of Engineering Depth: We don't just find the leak; we know why it happened (poor flange alignment, incorrect sealant, or thermal expansion) and how to fix it permanently.

• Calibrated Equipment: We use NIST-traceable digital manometers and flow grids, providing a precision level of pm 1.

• Turnkey Remediation: If a test fails, our fabrication team can immediately reseal or replace the faulty sections to ensure you pass the audit.
