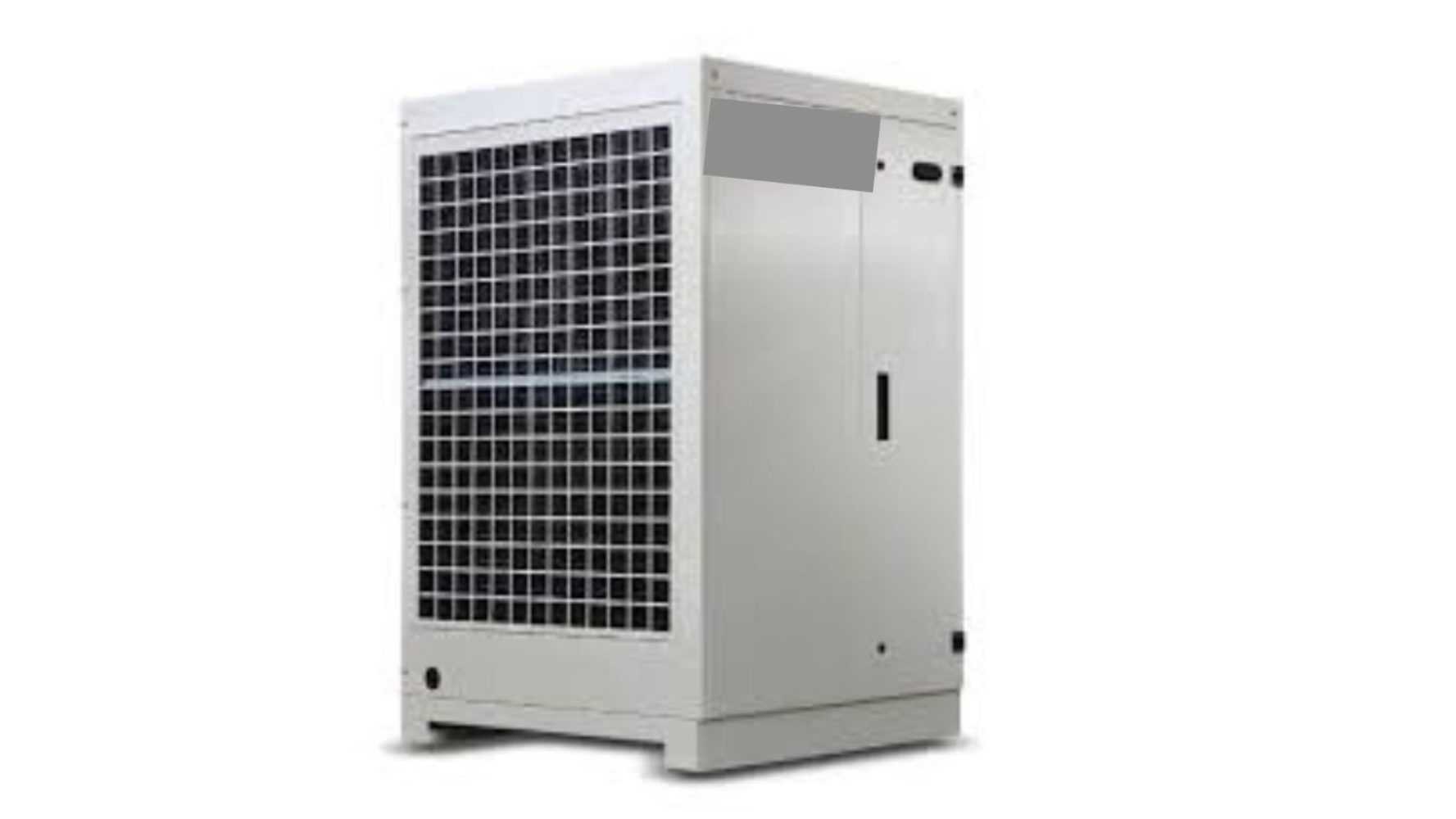

Refrigerant-Based Commercial Dehumidifiers | 2026 Tropical Performance

In 2026, Refrigerant-Based Commercial Dehumidifiers remain the primary defense against Malaysia’s high ambient humidity (>80 RH). Unlike desiccant systems used for ultra-low moisture, refrigerant units (also known as "Mechanical" or "DX" systems) are the most cost-effective solution for maintaining the 40%–70% RH range mandated by the March 2026 DOSH ICOP IAQ.

At EKG M&E, with 34 years of mechanical depth, we treat these units as more than just "coolers." We engineer them to manage the Latent Heat of the Klang Valley without over-chilling your workspace.

---

1. How It Works: The 2026 Phase-Change Cycle

The process is a refined version of the standard refrigeration cycle, optimized specifically for moisture removal rather than sensible cooling:

1. Aspiration: Humid office/warehouse air is drawn over a cold Evaporator Coil.

2. Condensation: The air temperature drops below its Dew Point, causing water vapor to liquefy and drip into a sterile condensate pan.

3. Reheating: The now-dry, cold air passes over a Condenser Coil (the "Hot" side). This air is reheated using the heat rejected by the compressor, ensuring the air returning to the room is dry and at a comfortable temperature.

4. Sterilization: 2026-standard units include UV-C LEDs over the coil and Silver-Ion (Ag+) treated pans to ensure no biofilm or mold growth.

---

2. 2026 Compliance: The DOSH & EECA Standard

Operating a commercial dehumidifier in 2026 requires adherence to new federal efficiency and hygiene laws:

• TFC (Total Fungal Count) Prevention: Under the 2026 DOSH updates, if a unit's drainage is blocked, the resulting stagnant water is a "Bio-Hazard." We install High-Limit Float Switches that shut down the unit if the pump fails, preventing leaks that cause mold in building materials.

• Low-GWP Refrigerants: Following the Environmental Quality Act, 2026 units utilize R-32 or R-454B. These have a significantly lower Global Warming Potential than older R-410A systems, helping your facility meet ESG (Environmental, Social, and Governance) targets.

• EECA 2024 Energy Intensity: In 2026, "Fixed-Speed" compressors are largely obsolete for commercial use. We specify Inverter-Driven Compressors that modulate power based on the actual moisture load.

---

3. EECA 2024: The "Cube Law" & Part-Load Efficiency

Under the EECA 2024, every commercial unit must contribute to a lower Building Energy Index (BEI).

• Variable Speed Drive (VSD) Integration: Most of our 2026 installations link the dehumidifier's fan and compressor to a VSD.

• The Cube Law Advantage: During the early morning or night when humidity is lower, the unit doesn't need to run at 100%.

• The Math: Following the Cube Law, reducing the fan and compressor speed by 20% results in a nearly 50% reduction in power consumption, preventing the "Energy Fighting" common in older buildings.

---

4. 2026 Commercial Selection Matrix

Application	Capacity (Liters/Day)	2026 Tech Feature
Server Rooms	30L – 60L	Precision Hygrostat & ESD Protection
Offices / Libraries	50L – 100L	Silent Inverter & HEPA Filtration
Gyms / Spas	90L – 150L	Corrosion-Resistant Gold-Fin Coils
Warehouses	240L – 480L	High-Head Condensate Pumps
Basements / Parking	150L+	BMS-Linked Leak Alarms

---

5. Maintenance: The "Dry-Coil" Protocol

With 34 years of experience, EKG M&E provides a specialized service tier for refrigerant units to ensure 2026 audit readiness:

• Chemical Fin Straightening: Airflow is restricted by bent or dirty fins, which spikes energy use. We perform precision cleaning to keep "Static Pressure" low.

• Refrigerant Charge Audit: A 10% loss in gas can lead to a 20% drop in moisture removal efficiency. We use Electronic Leak Detection to ensure 100% circuit integrity.

• NIST-Traceable Calibration: We calibrate the onboard sensors to ensure the unit isn't running unnecessarily, satisfying the Registered Energy Manager (REM).

---

Why Trust EKG M&E?

• 34 Years of Engineering Depth: We understand the "Latent Load" of the Malaysian monsoon. We ensure your unit is sized correctly so it doesn't "short-cycle," which destroys compressors.

• Audit-Ready Documentation: We provide the Microbial Validation and Energy ROI Reports required for your 2026 federal compliance logs.

• Turnkey Support: From MODBUS/BACnet integration to the final Silver-Ion Sterilization, we manage the entire moisture removal path.
