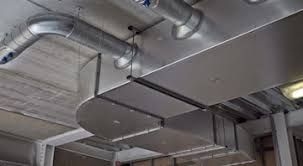

Hospital Grade Ducting | 2026 Clinical Sterilization Standards

In 2026, Hospital Grade Ducting in Malaysia is no longer just "cleaner" ductwork; it is a specialized medical component. Governed by the Ministry of Health (MOH) Engineering Standards, DOSH ICOP IAQ 2026, and ISO 14644-1, these systems are designed to eliminate healthcare-associated infections (HAIs) at the source.

At EKG M&E, with 34 years of mechanical depth, we treat the "Fresh Air Injection" path in hospitals as a sterile corridor. Every joint, coating, and filter is engineered to maintain life-saving air purity.

---

1. 2026 Compliance: Clinical Bio-Security

The March 2026 MOH updates have set the strictest limits for biological contaminants. To pass a clinical health audit, hospital ducting must achieve:

• Zero-Growth Surfaces: We utilize Stainless Steel (316L) or Anti-Microbial Rigid Polymer for critical zones (OT, ICU, NICU). These materials are non-porous and infused with Silver-Ions to achieve a 99.99% pathogen kill rate.

• The 100 cfu/m³ Ceiling: While standard offices allow 500 cfu/m³, clinical environments in 2026 target <100 cfu/m³. This requires high-velocity air scrubbing and multi-stage filtration.

• Hermetic Seal Class 6: All clinical ducting is pressure-tested to Class 6 (ATC 6). Any leakage into the ceiling void is considered a "Bio-Security Breach" under 2026 regulations.

---

2. Multi-Stage Clinical Filtration (HEPA/ULPA)

In 2026, the filtration sequence is the heart of the "Injection Path." We utilize a 3-stage barrier system:

• Stage 1 (Primary): MERV-8 pleated filters at the AHU intake to trap large dust and pollen.

• Stage 2 (Secondary): MERV-14 bag filters to capture fine particulates and bacteria-carrying droplets.

• Stage 3 (Terminal): HEPA H14 or ULPA U15 filters located at the diffuser level. This ensures that even if a contaminant enters the duct, it is trapped exactly at the point of entry into the room.

• Gel-Seal Integrity: We use "Knife-Edge" gel-seal frames to ensure zero air bypass, a 2026 requirement for all Operating Theatres (OTs).

---

3. UVGI & Pressure Gradient Management

We integrate active sterilization and physical barriers to ensure "one-way" air purity.

• High-Output UVGI: We install UV-C (254nm) arrays at the cooling coils and in-duct transitions. This "Kill-on-the-Fly" technology destroys the DNA of airborne viruses and drug-resistant bacteria (MRSA).

• Active Pressure Control: * Positive Pressure (+15 Pa): For OTs to keep contaminants out.

  • Negative Pressure (-15 Pa): For Isolation Rooms to keep infectious pathogens in.

• The Cube Law Connection: Clean, biofilm-free coils and ducts reduce "Static Pressure."

• The Math: Following the Cube Law, lower resistance allows your Variable Speed Drive (VSD) to deliver the mandatory 20–25 Air Changes per Hour (ACH) at a lower power draw, saving up to 50% in energy compared to clogged systems.

---

4. 2026 Hospital Ducting Matrix

Feature	Commercial Ducting	Hospital Grade (2026)
Material	Galvanized Steel	316L Stainless / Anti-Microbial Polymer
Internal Seams	Standard	Smooth Welded / Ground (HACCP Level)
Filtration	MERV-13	HEPA H14 / ULPA U15 (Terminal)
Active Sterilization	Optional	Mandatory UVGI + Bipolar Ionization
Compliance	DOSH 2026	MOH, ISO 14644 & DOSH 2026

---

Why Trust EKG M&E for Hospital Grade Systems?

• 34 Years of Engineering Depth: We understand the "Psychrometrics" of cold-room environments. We ensure the air is dehumidified to <50% RH to naturally suppress microbial growth.

• Audit-Ready Documentation: We provide the DOP (Dispersed Oil Particulate) Testing, Pressure Gradient Logs, and ISO Particle Count Reports required for MOH licensing.

• Turnkey Clinical Excellence: From the initial Bio-Risk Assessment to the final BMS-Linked Air Balancing, we ensure your facility is a safe haven for patients.
