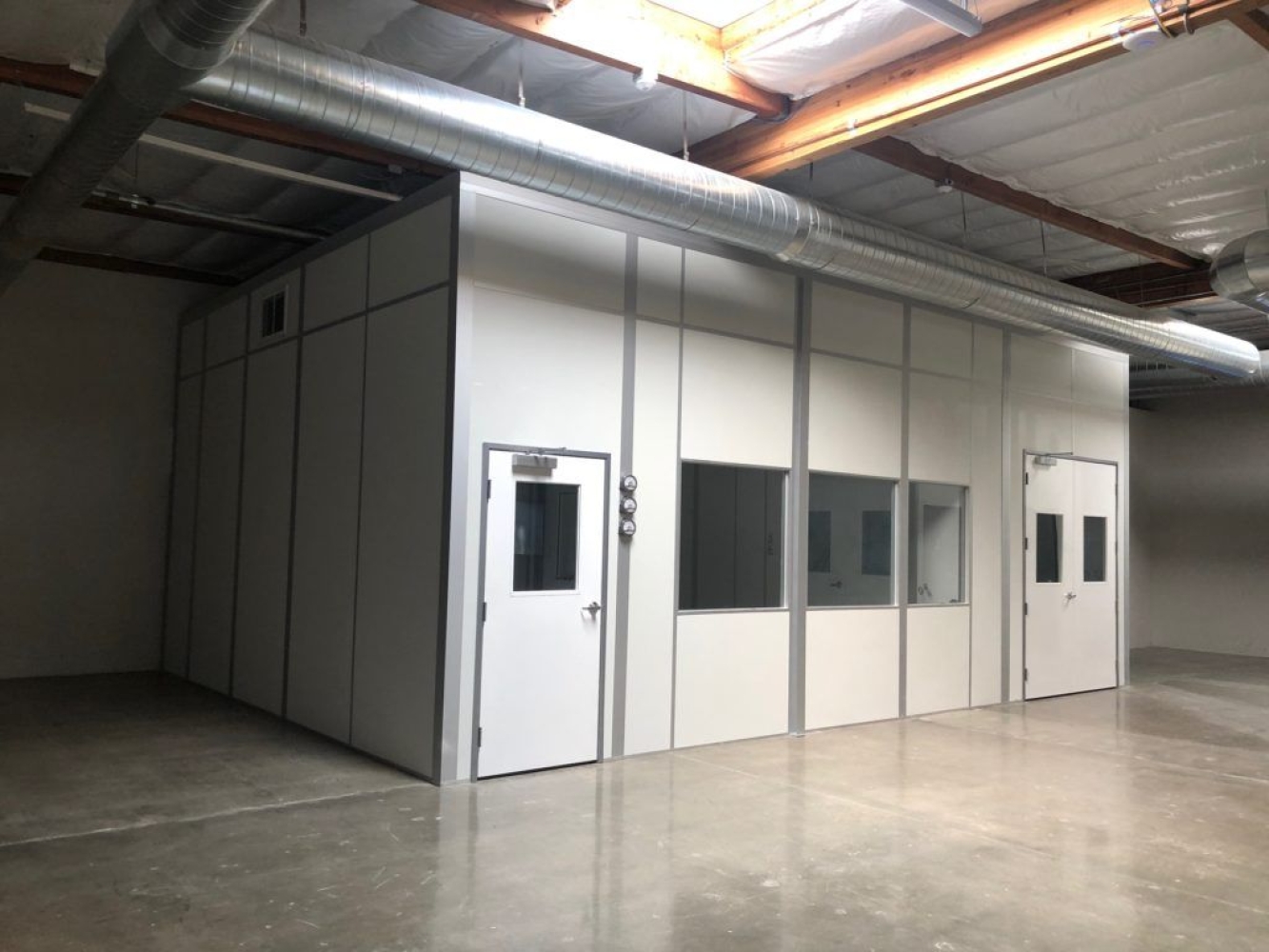

ISO Class Cleanroom Filtration Standards | 2026 Global Compliance

In 2026, ISO Class Cleanroom Filtration Standards are governed by the ISO 14644-1:2015 (Classification) and ISO 14644-3:2019 (Testing) series, which remain the definitive global benchmarks. For industries in Malaysia—ranging from Penang's semiconductor fabs to the Klang Valley's pharmaceutical labs—compliance is no longer just about particle counts; it now integrates Energy Intensity (EECA 2026) and Aerosol Integrity into a single validation framework.

At EKG M&E, we apply 34 years of engineering depth to ensure your cleanroom transition from "As-Built" to "In-Operation" is seamless and audit-ready.

---

1. ISO 14644-1:2026 Particle Concentration Limits

The classification of a cleanroom is determined by the maximum concentration of particles per cubic meter ($m^3$) of air.

ISO Class	≥0.1 μm	≥0.5 μm	≥5.0 μm	Equivalent FS 209E	Typical Application
ISO 1	10	-	-	-	Nanotech / Space Labs
ISO 2	100	4	-	-	Ultra-Precision Optics
ISO 3	1,000	35	-	Class 1	Semiconductor Wafers
ISO 4	10,000	352	-	Class 10	Micro-Electronics
ISO 5	100,000	3,520	-	Class 100	Aseptic Filling (Grade A)
ISO 6	1,000,000	35,200	293	Class 1,000	Biomedical Research
ISO 7	-	352,000	2,930	Class 10,000	Operating Theatres
ISO 8	-	3,520,000	29,300	Class 100,000	Packaging / Assembly

2026 Note: For ISO Class 5, the limit for 5.0 particles has been removed from the formal ISO classification table to improve statistical accuracy, though it remains a "Macro-particle" monitoring requirement (M descriptor) for EU GMP Annex 1 compliance.

---

2. Mandatory Testing Frequencies (ISO 14644-2:2026)

To maintain your certification under DOSH 2026 and NPRA guidelines, periodic re-testing is mandatory. The "Upper Confidence Limit" (UCL) calculation has been replaced by a more rigorous Minimum Sampling Point table.

•

  ≤ ISO Class 5: Re-qualification every 6 months.

• > ISO Class 5: Re-qualification every 12 months.

• Filter Integrity (PAO): Mandatory every 24 months for all classes (or 12 months for Grade A/B aseptic zones).

• Airflow Velocity: Re-verified every 12 months to ensure your ACH (Air Changes per Hour) meets the design specification (e.g., 240-600 ACH for ISO 5).

---

3. VFD Optimization & The Cube Law

Under the Energy Efficiency and Conservation Act (EECA) 2026, cleanroom filtration must be optimized using Variable Frequency Drives (VFDs).

• Dynamic Pressure Compensation: High-class cleanrooms (ISO 1-5) often utilize 100% ceiling coverage with Fan Filter Units (FFUs). We network these via VFDs to automatically ramp up as HEPA filters load, maintaining exact room pressure.

• The Cube Law Advantage: Cleanrooms are the most energy-intensive zones in any facility. Following the Cube Law, if we can achieve your target ISO class at a 20% lower fan speed through superior duct design and low-resistance H14 media, we slash your ventilation power draw by nearly 50%.

---

4. Mechanical Health: FFT Vibration Analysis

ISO standards now emphasize the "Stability" of the cleanroom environment. We employ Fast Fourier Transform (FFT) Analysis during validation:

• Resonance Fingerprinting: We ensure the AHU or FFU vibration doesn't create harmonic resonance in the ceiling grid. Vibration in the filter media can cause "Particle Shedding," leading to a sudden failure of the ISO classification.

• VFD Frequency Skipping: If a resonance is detected, we program the VFD to "skip" that specific RPM, ensuring the cleanroom remains structurally quiet and particle-free for its entire 18-month lifecycle.

---

Why Trust EKG M&E for ISO Validation?

• 34 Years of Engineering Depth: A Malaysian leader in high-performance MEP for the electronics and life sciences sectors.

• Certified Reporting: We provide the ISO 14644-1:2015 Compliance Certificate, PAO Leak Maps, and VFD Energy ROI data required for 2026 regulatory audits.

• Turnkey Engineering: We manage the entire lifecycle—from Cleanroom Design and HEPA Sourcing to Post-Installation Scan Testing.
